SMT Rework Equipment

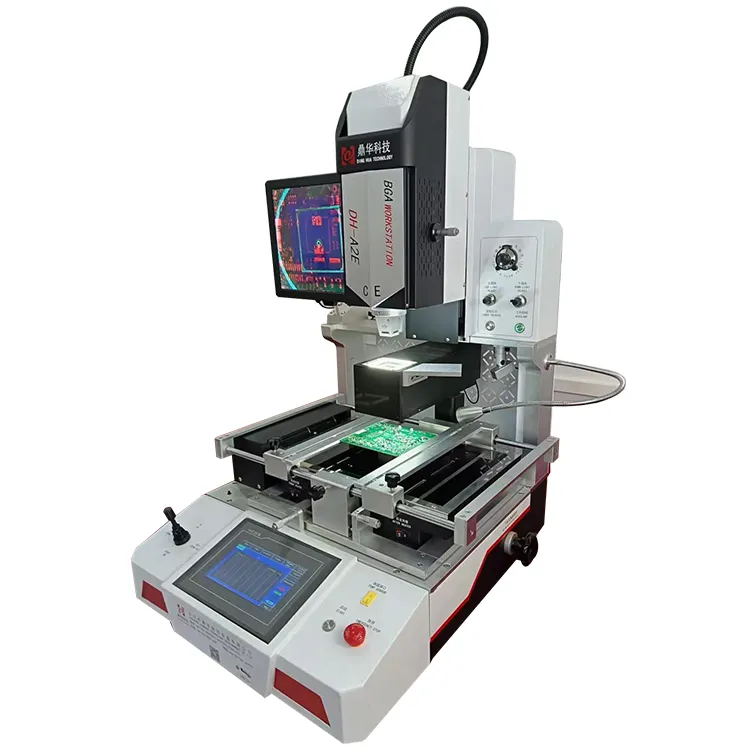

DH-A2E is a professional automatic BGA rework station designed for precise PCB repair and chip rework. It features optical alignment, three-zone temperature control, and stable heating performance for accurate soldering and desoldering of BGA, QFN, and other SMT components.
Description
Products Description
DH-A2E is a professional BGA rework station designed for high-precision PCB repair and advanced chip rework applications. As reliable SMT rework equipment and an efficient PCB repair machine, it provides stable heating performance, optical alignment, and accurate temperature control for BGA, QFN, and other SMT components.
This professional BGA rework station is widely used in electronics manufacturing and repair industries. The SMT rework equipment supports precise soldering and desoldering processes, while the PCB repair machine design improves rework efficiency and reduces operator error, making the DH-A2E an ideal choice for professional repair environments.
Products specification
|
Item
|
Parameters
|
|
Power Supply
|
AC220V±10% 50/60Hz
|
|
Total Power
|
4900w
|
|
Top Power
|
1200w
|
|
Bottom Power
|
1200w
|
|
Infared Power
|
2400w
|
|
Dimension
|
77*81*102mm
|
|
Operation Mode
|
Automatic + Manual
|
|
Temperature Profile Storage
|
10000 groups
|
|
Temperature Control
|
K Sensor + Closed Loop
|
|
Temperature Accuracy
|
±1℃
|
|
Position Accuracy
|
±0.01mm
|
|
PCB Size
|
Max 400×450 mm Min 10×10 mm
|
|
BGA Chip
|
2*2-80*80mm
|
|
External Temperature Sensor
|
1 pcs(optional)
|
|
Net weight
|
70kg
|
|
Machine type
|
Desktop
|
Products Details and application

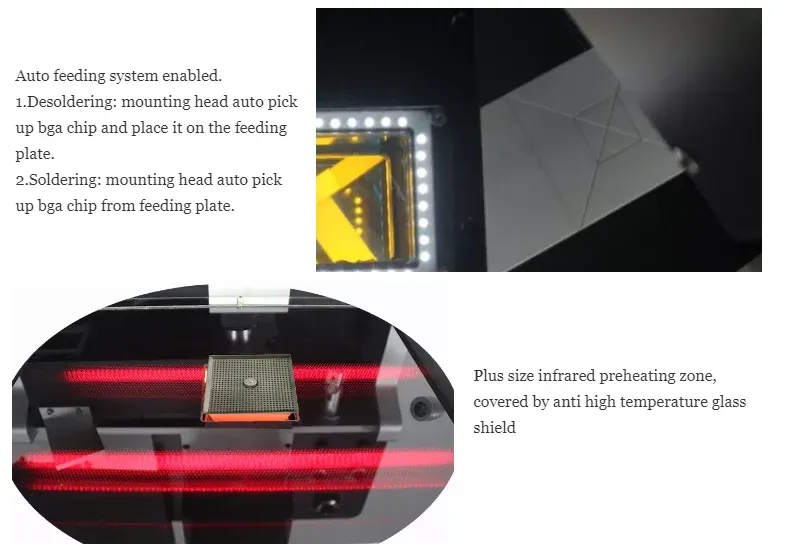

Products Details
company Introduction

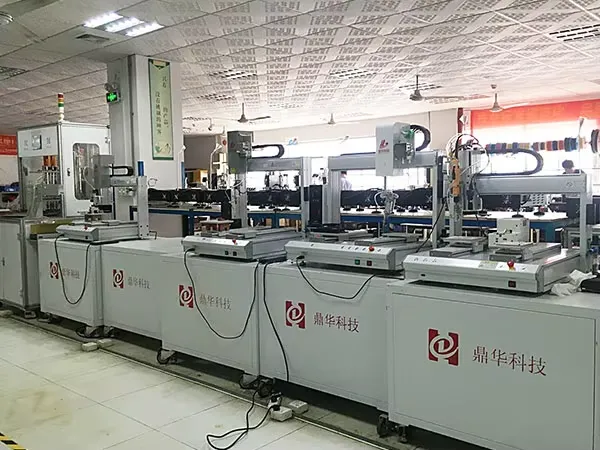

SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO., LTD is a leading manufacturer specializing in soldering equipment. Our product range includes BGA rework stations, automatic soldering machines, automatic screwdriving machines, soldering kits, and SMT materials.
Committed to excellence, our mission revolves around research, quality, and service, aiming to provide professional equipment, quality, and service. Dinghua has achieved significant milestones by obtaining various quality certifications such as UL, E-MARK, CCC,FCC, CE ROHS, ISO,GMP, FCCA, and C-TPAT. With over 38 patents, we have innovated manual, semi-auto, and automatic series, marking a transition from traditional hardware to integrated control.
Our products enjoy global recognition, being exported to over 80 countries and regions. Dinghua has established a robust sales network and terminal services system, making them a pioneer and guide in the SMT soldering industry.
Our products find applications in diverse sectors like individual maintenance, industrial and mining enterprises, teaching and research, and aerospace, earning a good reputation among users. Believing that clients' successes is our own, Dinghua strives to work together to build a better future.
