X-ray Machine Inspection

X-ray machine inspection is the process of using x-rays to inspect objects or materials for defects or abnormalities. This method is commonly used in industries such as manufacturing, aviation, and healthcare.

Send Inquiry

Description

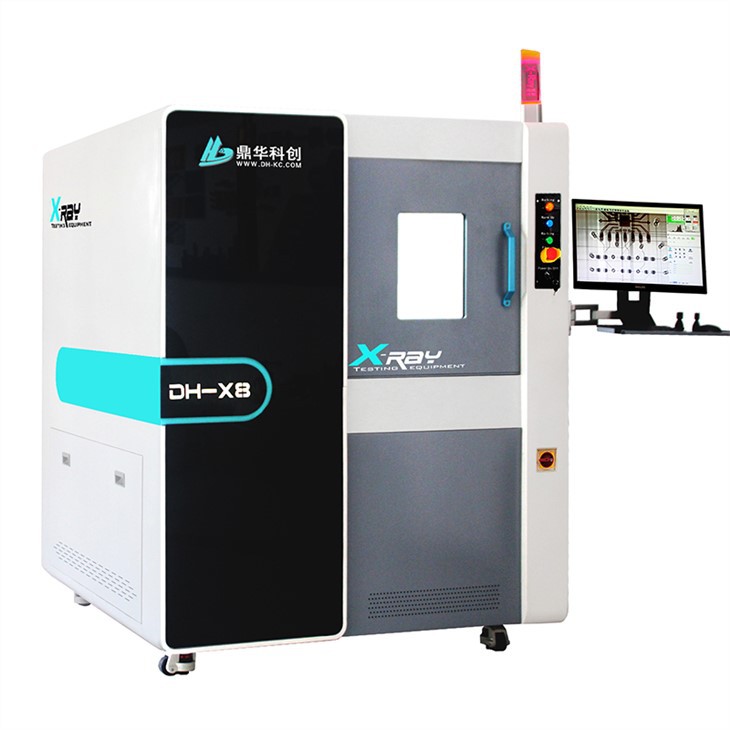

Xray machine inspection

In manufacturing, x-ray machine inspection is used to inspect welded joints, castings, and electronic components for

defects such as cracks, voids, and inclusions.

Feature:

This equipment meets the general X-ray testing requirements and has a wide range of applications.
The X-ray source adopts an imported enclosed X-ray tube, 90KV.
High-resolution design achieves the best image in a very short time frame.
The load capacity is approximately 10-20KG, with a 580mm * 570mm loading platform.
Cursor navigation positioning, quick selection of shooting location.
Laser automatic navigation and positioning, quick selection of shooting location.
Inclined multi-angle detection makes it easier to detect sample defects,The light tube flat plate can rotate
(0-60 °), making the detection image clearer and more intuitive.

Hardware parameters:


X-ray source	Light tube brand	Hamamatsu
	Light tube type	Closed reflection target microfocal X-ray source
	Light tube voltage	90KV
	Phototube current	10~200μA
	Focus size	5μm
Flat panel detector	Detector type	High-resolution digital flat panel detector (FPD)
	resolution ratio	85μm
	Platform size	580*570mm
	Maximum load	20kg
Machine housing	Inner lead plate	5mm thick lead plate
	Weight	1000kg
	Dimension	1440L1530W1820H
Power and moisture	Power supply	110~220V +/-10% 5A
	Rated power	1000W
	Working temperature	25 +/- 3℃
	Moisture	50%RH±10%
Safety regulations	Lead glass observation window	Transparent lead glass, which can observe the measured object
	Radiation dose	Adopting a steel lead steel protective structure, the front door window is made of lead-containing glass that protects against radiation. At any position 20mm away from the box, the equivalent rate of the tested radiation dose is ≤ 1 μ SV/H meets standards
	Security interlock	Two high sensitivity limit switches are set at the door opening positions for equipment maintenance and upkeep. Once the door is opened, the radiation source is automatically protected and cannot be opened
	Emergency stop button	Located next to the operation position, press to immediately power off.
	visible window	With a visible and transparent window, it is easy to observe the sample situation directly from the window during equipment operation
	X-ray tube protection	Only after turning off the X-ray can you leave the software for other operations
