Optical Bga Rework Station for Macbook repair

1 Piece Min. Order Dimensions: 820*770*870mm Weight: 116KG Rated Capacity: 6700W Current: 20A Voltage: AC 110~240 V±10% 50/60Hz Rated Duty Cycle: 100%

Send Inquiry

Description

Optical BGA Rework Station for MacBook repair

1. Description

Dinghua (DH) technology is one of the first manufacturers that focuses on BGA rework station, Touch screen manual

operation BGA rework station, CCD Camera Optical alignment BGA rework stations, Semi-automatic and fully automatic

BGA rework station manufacturer.

DH-A5 is the top level automatic BGA rework station, we are so happy to cooperate with Google in the production line in

Foxconn with DH-A5

Power supply	AC220V±10% 50/60Hz
Power	6700W
Top heater	Hot air 1200W
Bottom heater	Hot air 1200W, Infrared 3900W
Temperature control	K sensor closed loop control, independent heating
Temperature accuracy	±2°C
Positioning	V-groove PCB support, and with the external universal fixture
Workbench fine-tuning	±15mm forward/backward,±15mm right/left
Placement Accuracy	±0.01MM
PCB size	Max 450490 mm, Min 2222 mm
BGA chip	8080-22mm
Minimum chip spacing	0.15mm
External temp Sensor	5(optional)
Machine dimension	(LWH): 950750950mm
Packing dimension	(LWH): 11090110cm
NW/GW	approx 91/116 KG

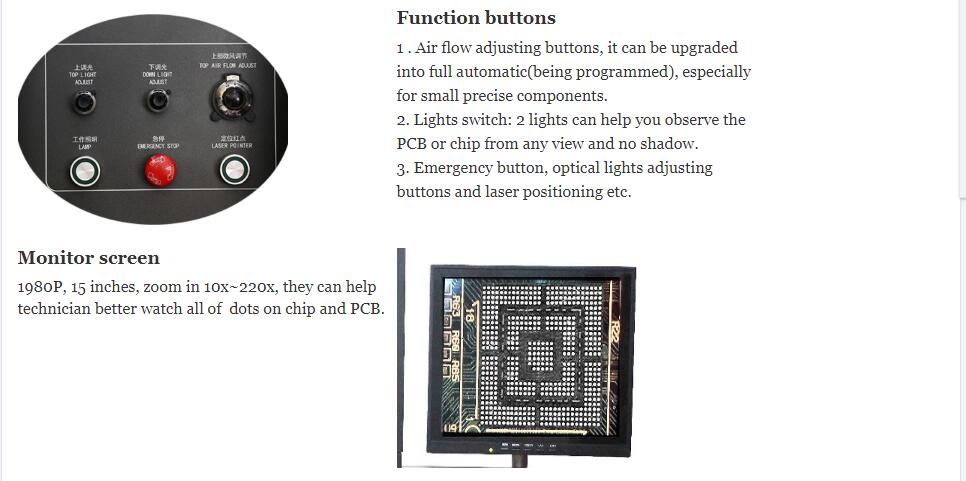

HD touch screen interface, PLC control
HD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA
observation range, fine-tuning accuracy can be 0.01mm
Top heater and nozzle 2 in 1 design, alignment, placement, welding and remove automatically. Top heater height
can be adjusted after an auto process, user-friendly. Placement height and height of the top heater can be set or
detect auto.
Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature
profile is unlimited. IR preheat area can be controlled according to PCB size
K sensor closed loop control and automatic temperature compensation system. It combines with temperature module,
which enables temperature accuracy to ±2°C
Hot air nozzles, 360 degrees rotation, easy to install and replace, customized is available.

lV-groove PCB support for rapid, convenient and accurate positioning that fits for all kinds of PCB board.

Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
CE certification, with emergency switch and automatic power-off protection device when an emergency happens

What can be repaired?

1. All kinds of mobile phone PCBA,
Such as Samsung, Huawei, OPPO and etc, professional foriPhone.. Replacing iPhone baseband chip , audio chip,

flash memory chip, the core processor, and so on.

2. repairing the broken BGA (Ball Grid Array package) chipset on the PCB motherboard.
1)Laptop & desktop PCBA
2)Game console, such as the Xbox one, Play Station 4
3)Mobile phone PCBA
4)TV&TV Set-top box motherboard
5)Server, Printer, Camera etc motherboard
