Touch Screen Mobile Phone BGA Rework Station
The BGA ReworkStation is a popular tool used for mobile phone repair, especially for repairing and replacing electronic components on printed circuit boards (PCBs). It is designed to provide precise and accurate heat control, allowing technicians to remove, replace, or repair tiny components such as capacitors, resistors, and microchips without damaging adjacent components or the PCB.
Description
The BGAReworkStation typically includes a hot air gun, a temperature control unit, and a work platform with specialized
tools for holding and positioning the PCB and components. The hot air gun produces a controllable stream of
high-temperature air that softens the solder paste, allowing the components to be safely removed or replaced.
1. Product description of touch screen mobile phone bga rework station DH-B2
With Bluetooth Musical function, Dinghua BGA Rework Station DH-B2 can be connected with mobile or Memory
card to music, enjoy working, enjoy music.
2. Product specification of touch screen mobile phone bga rework station DH-B2
The BGAReworkStation is highly versatile and can be used for a wide range of mobile phone repair tasks,
such as repairing water damage, fixing broken charging ports, or replacing damaged screens. It is also commonly
used for repairing other types of electronic devices, such as laptops, tablets, and gaming consoles.
|
DH-B2 SPECIFICATIONS |
|
|
Total Power |
5000W |
|
Top heater |
1200W |
|
Bottom heater |
2nd 1200W, 3rd IR diode tube heating 2400W |
|
Power |
AC220V±10％ 50Hz |
|
Lighting |
Taiwan led working light, any angle adjusted. |
|
Storage |
50000 groups |
|
Top heater movement |
Right/left,frontward/backward, rotate freely. |
|

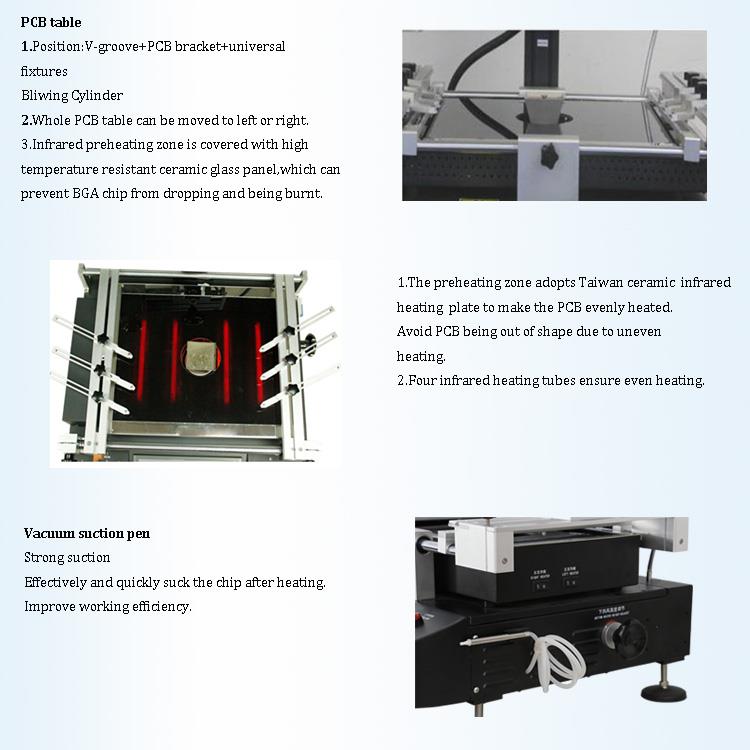

Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with "5 points support" + V-groov pcb bracket + universal fixtures. |

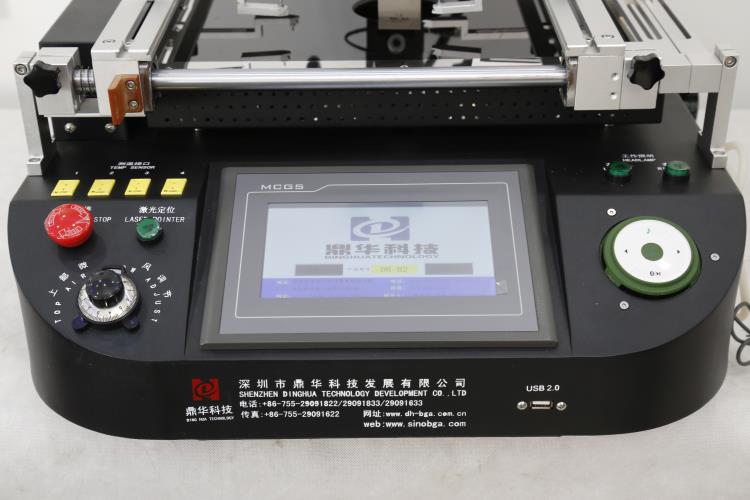

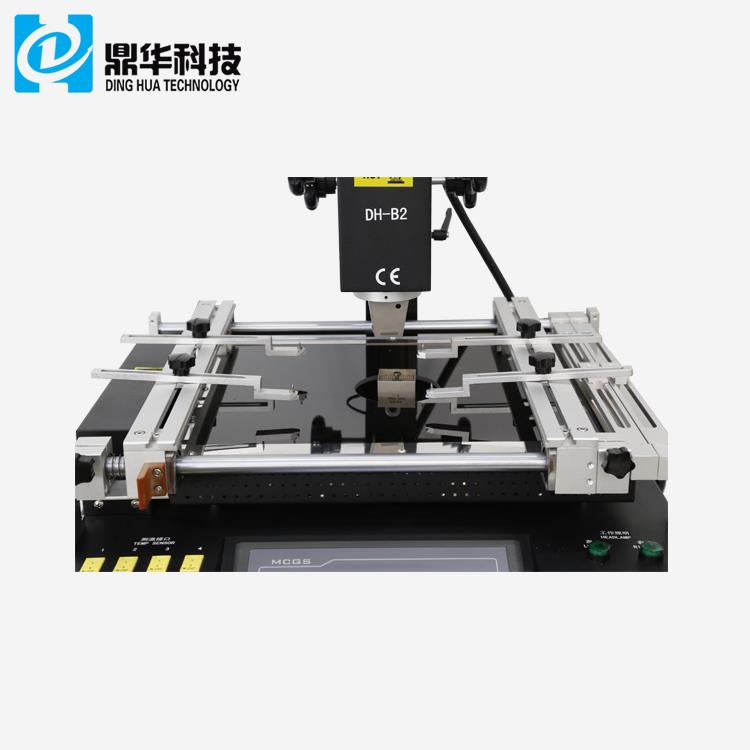

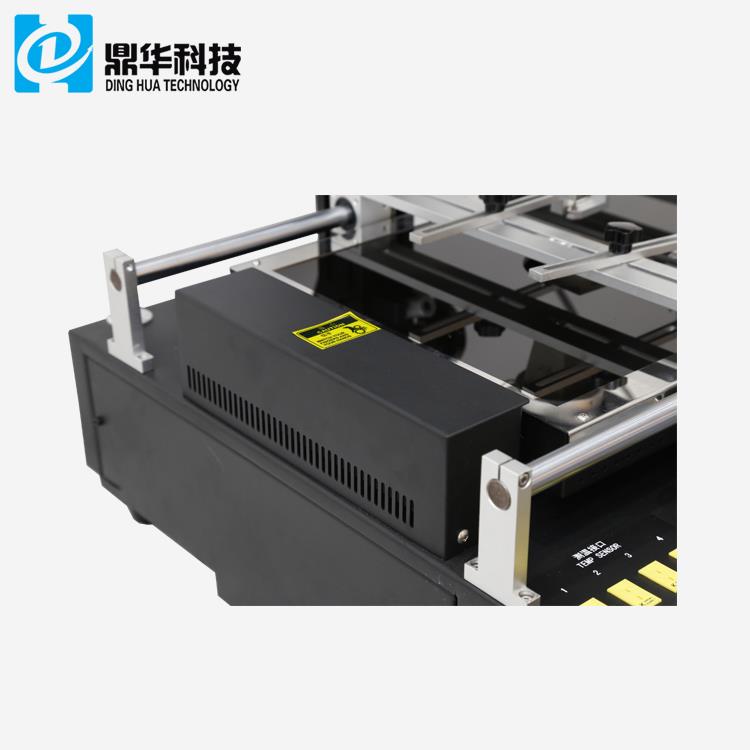

3. Product details of touch screen mobile phone bga rework station DH-B2
Overall, the BGA Rework Station is a valuable tool in the works of any mobile phone repair technician, allowing
them to perform delicate repairs and replacements with precision and accuracy.
4. Why Choose touch screen mobile phone bga rework station DH-B2
Humanized design:
-
Upper heater can move up/down, front/back, rotate freely
-
Lower heater can move up/down to keep best distance with pcb.
-
Strong sense of thermometer, temperature measurement more accurate
-
PCB clamp (V-groove) with universal fixture, suitable for all kinds of BGA.
-
It can set 8 segments heating, massive storage of temperature profiles
-

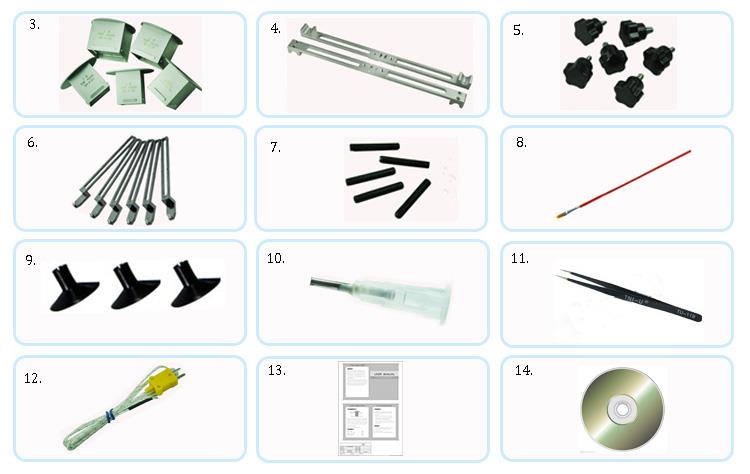

5. Packing, delivery of touch screen mobile phone bga rework station DH-B2
6.Shipping:
1.Shipment will be made within 5 business days after receiving payment.
2.Fast delivery shipment by DHL,FedEX,TNT ,UPS and other ways including by sea or by air.
7. Related knowledge about BGA
Several ball array packaging technologies are used in surface mount technology. Plastic ball grid arrays,
ceramic ball grid arrays, and ceramic columnar arrays are commonly used. Due to the different physical
characteristics of these packages, the bga's rework is more difficult. During the rework, using the latest
automation equipment, and understanding the direct impact of the structure and thermal energy of these
types of packages on component removal and reattachment is necessary, which not only saves time and money,
but also saves components. Improve the quality of the board and achieve a quick return service. In many cases,
bga packages can be repaired on their own, without the need for special maintenance personnel to come to the door.
The bga ground package rework also includes the removal of other "good" bga components from the defective board.
