Reflow Touch Screen SMD Rework Machine

Quick Preview:

The Reflow Touch Screen SMD Rework Machine is a highly advanced and innovative piece of technology that has revolutionized the process of repairing electronics. This machine is specifically designed for reworking surface-mount soldering, an integral part of modern electronics manufacturing. With its advanced features and functionalities, the Reflow Touch Screen SMD Rework Machine has become indispensable for industries dealing with electronics.

The machine is equipped with an easy-to-use touch screen interface, simplifying the repair process. Additionally, its advanced features allow for precise temperature control, ensuring that critical components of the electronic device are not damaged during the repair. The Reflow Touch Screen SMD Rework Machine is also fast and efficient, reducing downtime and increasing productivity.

1. Specification

Spec
1	Power	4900W
2	Top heater	Hot air 800W
3	Bottom heater Iron heater	Hot air 1200W, Infrared 2800W 90w
4	Power supply	AC220V±10% 50/60Hz
5	Dimension	640*730*580mm
6	Positioning	V-groove, PCB support can be adjusted in any direction with external universal fixture
7	Temperature control	K type thermocouple, closed loop control, independent heating
8	Temp accuracy	±2 degrees
9	PCB size	Max 500*400 mm Min 22*22 mm
10	BGA chip	2*2-80*80mm
11	Minimum chip spacing	0.15mm
12	External Temperature Sensor	1(optional)
13	Net weight	45kg

2.Main Features of the DH-A1L BGA Rework Station

1. Touch screen with PLC control: 3 temperature profiles can be displayed, with a temperature accuracy of ±1°C.
2. 7-segment temperature control: Preheating, heat preservation, warm-up, welding 1, welding 2, cooling, and temperature drop can be set.
3. Up to 30 groups can be stored: Profiles can be analyzed and modified directly on the touch screen.
4. 3 independent heating zones: Multi-group, multi-segment temperature profiles can be applied in the first and second zones, while the PCB is heated in the third zone. Heating time, temperature slope, cooling, and alarms are displayed on the touch screen.
5. K-type thermocouple: Includes a temperature testing connector to monitor temperature.
6. Alarm function: After welding the BGA, the machine will shut off if the temperature is abnormal. It also includes over-temperature protection.
7. Crosscurrent air motor: Ensures the PCB remains stable during the rework process.
8. PCB positioning with V-slot: The omnipotent clamp securely holds the PCB in place.
9. Handles large-capacity PCBs: Suitable for high-temperature, lead-free BGA/CSP, and pillar BGA rework.
10. 360° rotatable nozzle: Easy to replace with different nozzles.
11. Handles large-capacity PCBs: Suitable for high-temperature and lead-free soldering.

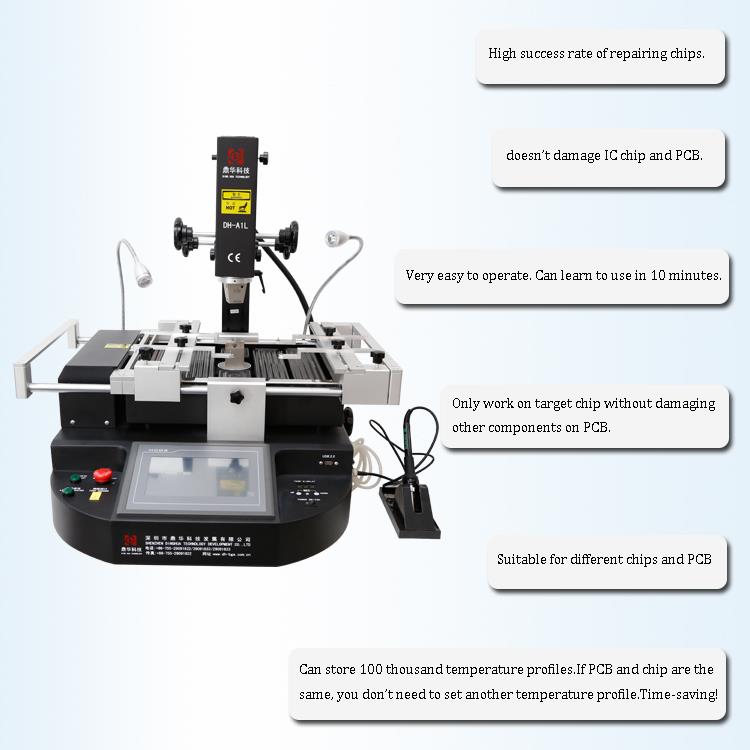

3. Why you should choose the  DH-A1L BGA rework station?



4.Related Knowledge:

Repair Steps

Step 1: Observe
Check whether the antenna shell is original, whether the motherboard is damaged or deformed due to water, and if any components are burned or broken.

Step 2: Test
Test the operating current, critical voltage, and TTL to ensure they are normal.

Step 3: Maintenance
Follow the principle of ease of service: address mechanical failures first, followed by software issues, and finally repair or replace any faulty parts.

Step 4: Cleaning
After maintenance, clean off any excess soldering oil and slag from the motherboard, and wipe the screen and shell of the mobile phone.

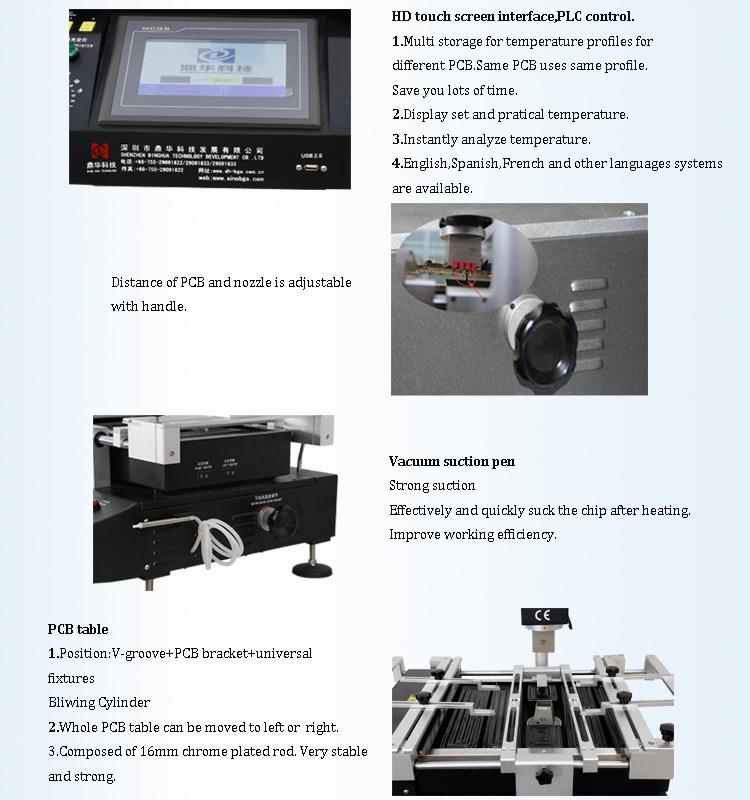

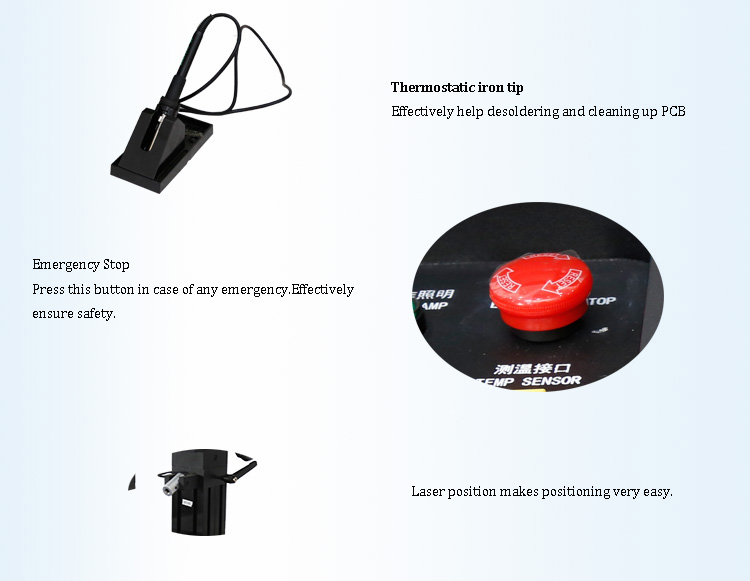

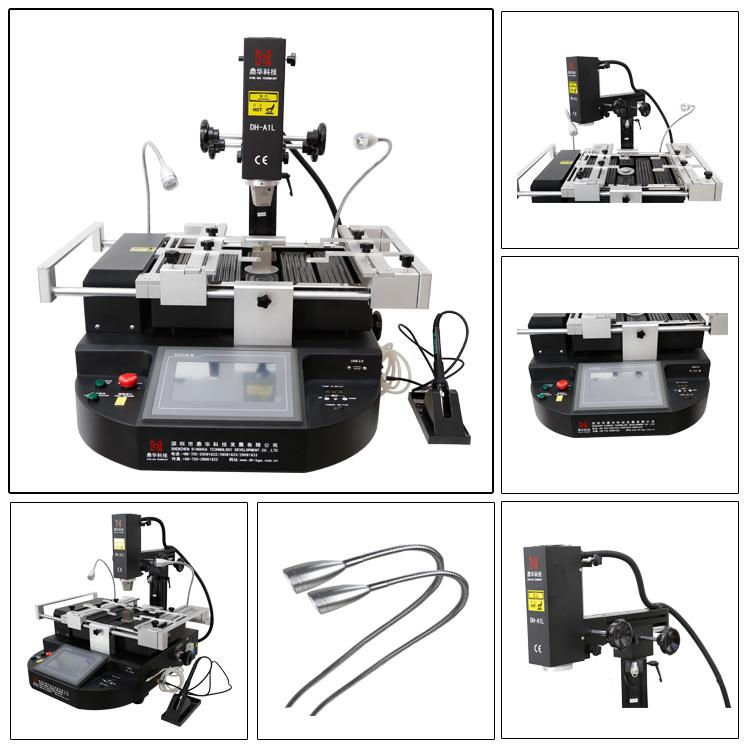

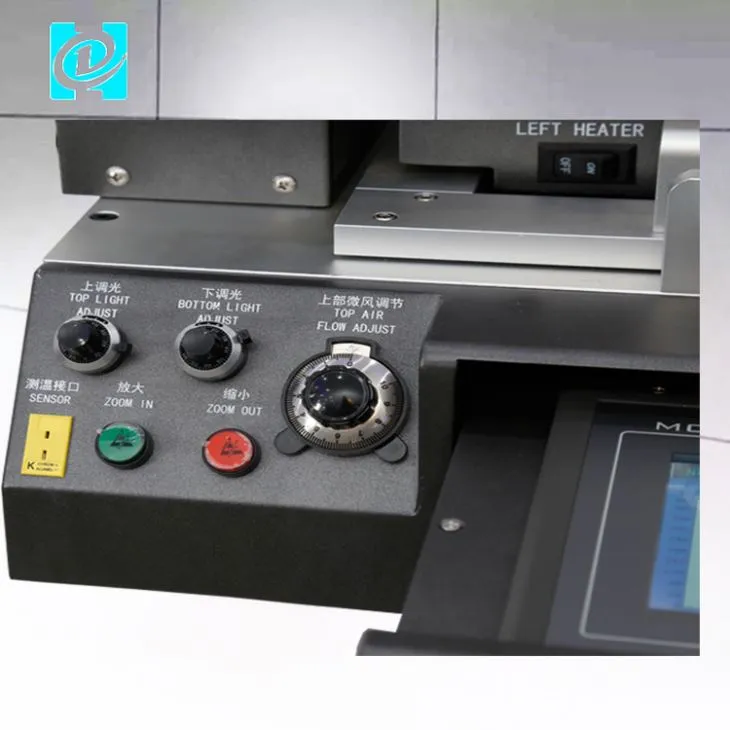

5. Detailed Images of DH-A1L BGA REWORK STATION

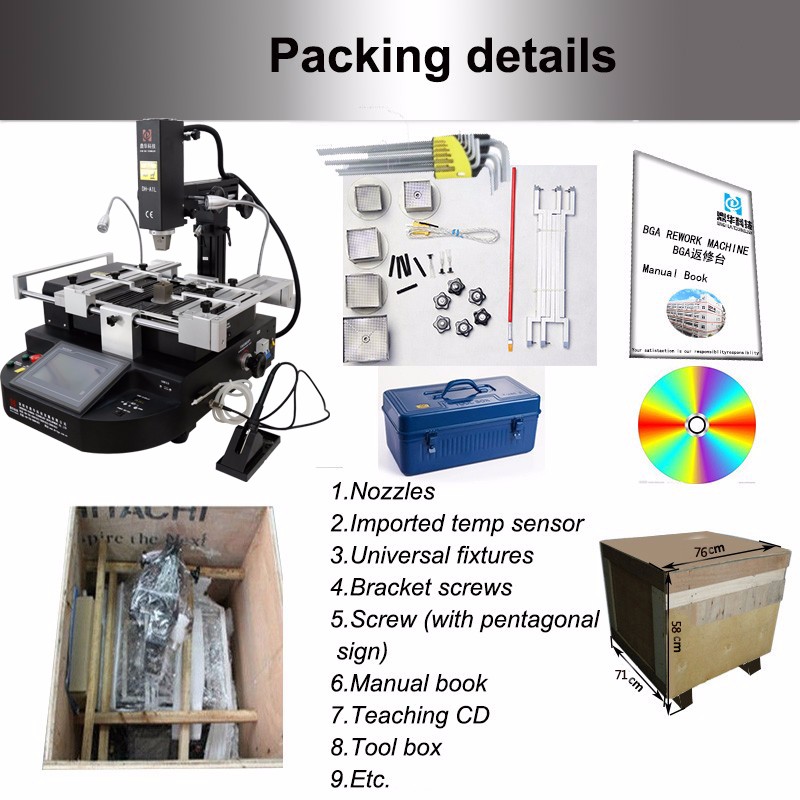

6.Packing & delivery details of DH-A1L BGA REWORK STATION

Delivery detials of DH-A1L BGA REWORK STATION

Shipping:

1.Shipment will be done within 5 business days after receiving payment.

2.Fast delivery shipment by DHL,FedEX,TNT ,UPS and other ways including by sea or by air.

7.FAQ

Q:What is your package? Is it safe during the transport ?

A: All our BGA rework station are packed in Solid wooden box with foam, sticks and band to

fix inside. It is safe enough during the transport.

Q: Which way and how many days will the machine arrives? What is your package?

A: We ship by DHL,Fed-ex, UPS,etc (Door to Door Service),

4~7 days to arrive; by Air to your nearest airport(Door to Airport Service )

2~5 days to arrive; by Sea to your nearest seaport,

10~20~30~40 days to arrive. (different country different time)

Q: About the warranty, how long and how to do the after sales service?

A: 1 year warranty for spare parts, and Whole life technical support. We have professional technical

 team, for any question, assistant videos are also provided.

Q: How do I do the payment? Which way is better?

A: Bank transfer, Western Union, Money gram, Paypal, etc.are accepted,but Bank transfer and paid to

Alibaba trade assurance is preferred.
