Automatic BGA Rework Station Price
1 Piece Min. Order Dimensions: 820*770*870mm Weight: 171KG Rated Capacity: 5300W Current: 20A Voltage: AC 110~240 V±10% 50/60Hz Rated Duty Cycle: 100%
Description
Description
Dinghua technology is one of the top ranking manufacturer ,focuses on Automatic Soldering Robot, Automatic Screw locking machine, Automatic dispenser machine, Manual&Automatic operation BGA Rework station with solid quality and competitive prices. We already cooperated with many famous company in China and abroad.

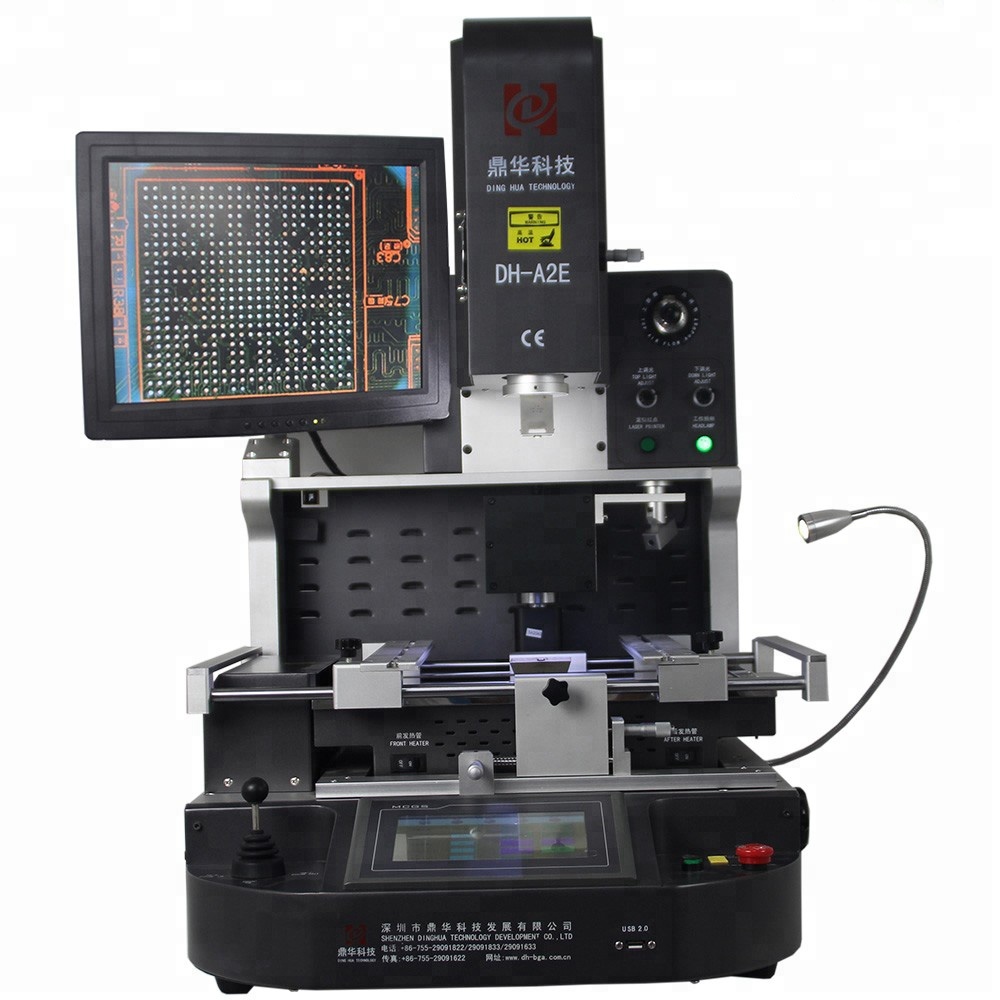

DH-A2E is an unique style BGA rework station, high definition CCD camera with automatic feeding and picking system , much more convenient in operation . high rework success rate is highly praised between customers .
A2E big promotion period from September 1st to September 30, 2018
A2E video Link :
Parameters
1 | Total power | 5300w |
2 | 3 independent heaters | Top hot air 1200w, lower hot air 1200w, bottom infrared preheating 2700w |
3 | Voltage | AC220V±10% 50/60Hz |
4 | Electric parts | 7 inch touch screen + intelligent temp control module + stepper motor driver + independent Mitsubishi PLC + LCD display + optical CCD system + laser positioning + industrial joystick |
5 | Temperature control | K-Sensor closed-loop + PID automatic temp compensation + temp module, temp accuracy within ±2℃. |
6 | PCB positioning | V-groove + universal fixture + movable PCB shelf |
7 | Applicable PCB size | Max 370x410mm Min 22x22mm |
8 | Applicable BGA size | 2x2mm~80x80mm |
9 | Dimensions | 600x700x850mm (L*W*H) |
10 | Net weight | 70kg |
DH-A2E automatic BGA rework station Features
﹡ Automatic desoldering, Mounting and Soldering, automatic pick up chip when desoldering completed.
﹡ Chip auto feeding system enabled.
﹡ HD CCD Optical Alignment system for precisely mounting BGA and Components. CCD lens auto Folding & streching.
﹡ Independent MITSUBISHI PLC inside to control movements, movement more stable and accurate.
﹡ BGA mounting accuracy within 0.01mm , Repair success rate 99.9%.
﹡ Laser Positioning for Fast Positioning BGA Chip and motherboard.
﹡ Equipped with top air flow adjust button, to meet the demands of tiny chips.
﹡ Superior Safety Functions, with Emergency protection.
﹡ User-friendly operation, Multi-functional ergonomic system.
What can be repaired?
Detailed specifications
Packing details
Certificate
Our factory
Our service
1.We are online 24 hours ;
2. Offer free spare parts and service within one year warranty
3.Technology Support: Provide Demo operation video for training;Kindly invite you to visit our factory and enjoy free training
4. Fantastic after-sales service;
5.Life-long technical support from well trained staff and engineers.
Customers visiting
Welcome to have a visiting to Dinghua !
