SMT Chip Counter Machine

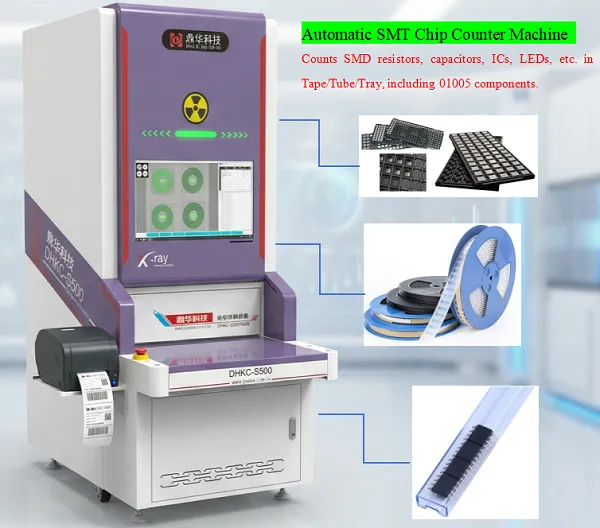

An automatic counting device based on X‑ray penetration imaging, specially designed for tiny SMT electronic components. 1.Non‑contact & non‑destructive testing 2.Penetrates and identifies overlapping components 3.Counting accuracy ≥99.95%, speed: 1 reel/sec 4.Auto counting & 1D/2D code recognition 5.Supports MES/ERP/WMS connection 6.Auto label generation & printing
Description
DHKC-S500 x ray component counter
Why Your SMT Production Line Needs an x ray component counter
Every SMT factory knows how troublesome manual reel counting can be.
Manual counting takes 3 to 5 minutes per reel, easy to cause eye fatigue and counting errors. Ultra-small components like 01005 / 0201 are almost impossible to count clearly by eyes. Wrong quantity delivery often leads to production line shutdown, material waste and extra labor cost.
Our x ray counter machine is specially designed to solve all these pain points.
As a professional x ray parts counter, it adopts X-ray penetration imaging technology, perfectly suitable for all kinds of SMT electronic components reel counting.
Core Advantages
- Non-contact & Non-destructive Counting
This X-Ray Component Counter uses X-ray penetration to see through packaging and identify overlapping components inside the reel. No damage, no scratch, no static harm to high-value chips and sensitive parts.
- Ultra High Counting Accuracy & Speed
Counting accuracy reaches over 99.95%.It can finish one reel in a very short time, support multiple reels counting at the same time, greatly improve workshop efficiency and save manual work.
- Wide Compatibility for All SMT Materials
The x ray parts counter supports reel material, tray material, loose parts, moisture-proof bag components and leftover reels.
- MES / ERP / WMS System Connection
It supports automatic 1D & 2D barcode recognition, data synchronization with factory MES, ERP and WMS system.
For factories without MES system, the machine can also automatically generate daily counting reports and save all records for full traceability.
- Auto Label Printing & Editing
Support custom label template, automatic generate and print labels with quantity, date, part number and batch information, convenient for warehouse management and material turnover.
Main Technical Parameters
| Parameter | Details |
|---|---|
| Model | DHKC-S500 |
| Working Voltage | AC 220V |
| Compatible Reel Size | 7–17 inch |
| Supported Components | 01005, 0201, 0402, 0603, BGA, QFP, QFN, resistor, capacitor, inductor, diode, transistor etc. |
| Counting Mode | Single reel / Multi reels auto recognition, no need manual mode setting |
| Language | English / Chinese |
| Safety Standard | CE certified, low radiation, safe for long-term operation |
