SMT Pick & Place Reball System
1.optical alignment system 2.laser positioning 3.top heater and nozzle 2 in 1 4.HD touch screen interface
Description
SMT Pick & Place Reball System
Auto Reball System is likely a specific brand or model of equipment used in electronics manufacturing or repair.
It may be a machine or tool designed to pick and place small components onto a circuit board or to reball (replace) faulty
components on a board. Without further context or information, it is difficult to provide a more detailed explanation.
Operation Demo:
Desoldering BGA Ball and tin
Specifications:
| 1 | Total power | 5200w |
| 2 | 3 independent heaters | Top hot air 1200w, lower hot air 1200w, bottom infrared preheating 2700w |
| 3 | Voltage | AC220V±10% 50/60Hz |
| 4 | Electric parts | 7'' touch screen + high precision intelligent temp control module + stepper motor driver + PLC + LCD display + high resolution optical CCD system + laser positioning |
| 5 | Temperature control | K-Sensor closed-loop + PID automatic temp compensation + temp module, temp accuracy within ±2℃. |
| 6 | PCB positioning | V-groove + universal fixture + movable PCB shelf |
| 7 | Applicable PCB size | Max 370x410mm Min 22x22mm |
| 8 | Applicable BGA size | 2x2mm~80x80mm |
| 9 | Dimensions | 600x700x850mm (L*W*H) |
| 10 | Net weight | 70 Kg |
Applications:
Characteristic:

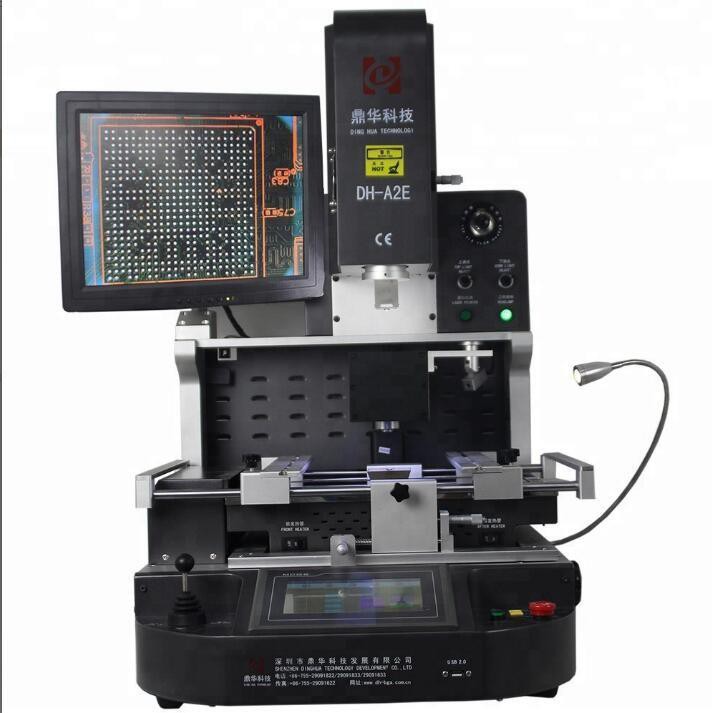

SMT Pick & Place Reball System DH-A2E
DH-A2E is designed to rework SMD / BGA / uBGA / QFN / LEDs on small to medium-large PCB assemblies with
up to an 18"/450mm PCB capacity. It is loaded with advanced features delivering many benefits including the highest
performance and soldering quality available anywhere, yet it remains simple to set up and use. with only the finest
components for optimum precision, which is our top-selling system and one of the best-performing BGA Rework Stations
worldwide.
Packing List :
Materials: Strong wooden case+wooden bars+proof pearl cottons with film
1pc brush pen
1pc Instruction Manual
1pc CD video
3pcs top nozzles
2pcs bottom nozzles
6pcs universal fixtures
6pcs fastened screws
4pcs support screw
Sucker size: Diameters in 2,4,8,10,11mm
Inner hexagon spanner: M2/3/4
Dimension:81*76*85CM
Gross weight: 115 kg
Shipping by FedEx, DHL, UPS, etc. door to door courier service within 3-5days
