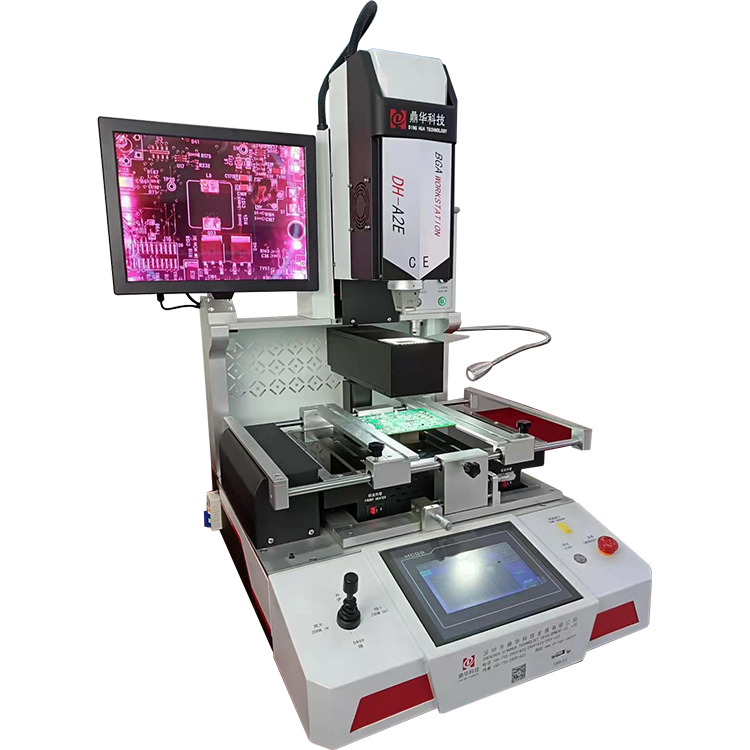

Multi-zone Heating BGA Rework Station

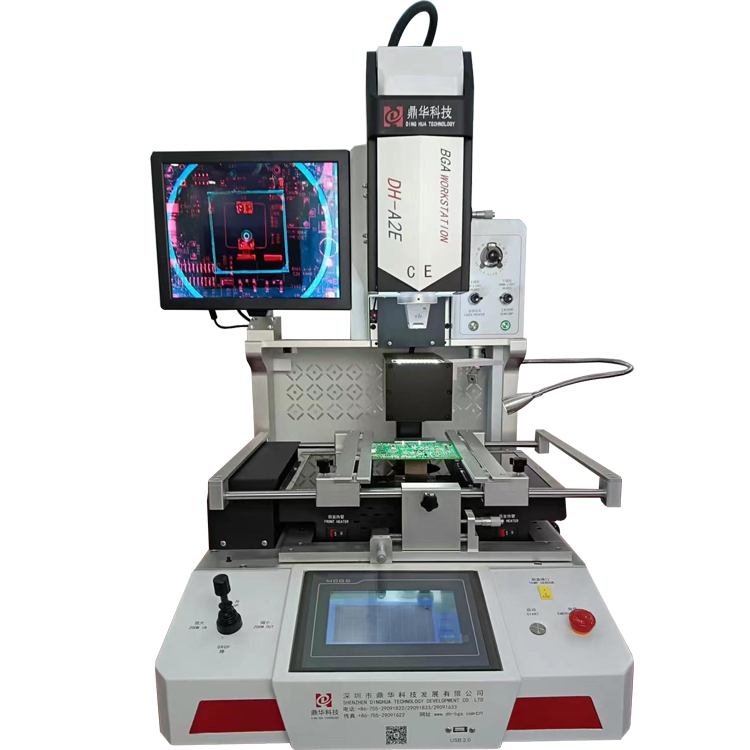

Dinghua DH-A2E is a professional wulti-zone Heating BGA rework station designed to provide high-precision quality repair for complex electronic assembly parts as well as being very popular amongst technicians repairing motherboards used in laptops, gaming consoles such as PlayStation 4 (PS4) and Xbox and industrial control boards.This advanced automatic BGA rework station is perfect for performing high-precision rework tasks on a variety of BGA, QFN, and other chip packages.
Description
Products Description
Dinghua BGA Rework Station DH-A2E is a multi-zone heating BGA rework station designed to meet the demanding needs of modern electronics repair and manufacturing. This advanced automatic BGA rework station is perfect for performing high-precision rework tasks on a variety of BGA, QFN, and other chip packages.
The Dinghua DH-A2E is a professional-grade, fully automatic BGA rework station designed for high-precision repair of complex electronic assemblies. It is widely used for repairing motherboards in laptops, gaming consoles (PS4/Xbox), and industrial control boards.
Products Specification
|
Item
|
Parameters
|
|
Power Supply
|
AC220V±10% 50/60Hz
|
|
Total Power
|
4900w
|
|
Top Power
|
1200w
|
|
Bottom Power
|
1200w
|
|
Infared Power
|
2400w
|
|
Dimension
|
77*81*102mm
|
|
Operation Mode
|
Automatic + Manual
|
|
Temperature Profile Storage
|
10000 groups
|
|
Temperature Control
|
K Sensor + Closed Loop
|
|
Temperature Accuracy
|
±1℃
|
|
Position Accuracy
|
±0.01mm
|
|
PCB Size
|
Max 400×450 mm Min 10×10 mm
|
|
BGA Chip
|
2*2-80*80mm
|
|
External Temperature Sensor
|
1 pcs(optional)
|
|
Net weight
|
70kg
|
|
Machine type
|
Desktop
|
|
Minimum chip spacing
|
0.1mm
|
|
Camera pixel
|
6 millions
|
|
Chip feeding
|
automatically take or put
|
|
PCBA Positioning
|
Up and down intelligent positioning, the bottom "5 point support"with v-type card slot fixing PCBA which can be freely adjusted in
X-axis direction, with external universal fixtures
|
|
BGA position
|
Laser positioning v-shaped card slot and universal fixtures
|
|
Optical CCD Lens
|
Automatically going out , back and focus
|
Products Key Features
Multi-Zone Heating Technology
Utilizing Multi-Zone Heating technology, the DH-A2E achieves equitable heat distribution throughout the printed circuit board (PCBA) and Ball Grid Array (BGA) components via distinct zones of the machine's heating element such as independent top/bottom/preheat zones. This allows for close to uniform temperature distribution so that all BGA's can be soldered according to their own specifications and thus eliminates the opportunities for thermal damage to sensitive electronic components during soldering/desoldering processes.
Automatic BGA Rework Station
The DH-A2E eliminates the need for manual processes by using automation to handle the essential functions of BGA rework such as temperature control, alignment, and soldering. The use of these automated capabilities increases the speed and accuracy of BGA rework, therefore making this machine suitable for both low volume repair work and as an addition to high volume manufacturing.
Optical Alignment with CCD Camera
By employing a thoroughly-developed optical alignment system and uses a high-resolution CCD camera to provide optimum positioning of BGA components, this feature allows the user to ensure that all soldering-joints are perfectly aligned when performing rework-thereby minimizing errors caused by humans.
BGA Rework Station for Laptop Repair
Designed specifically for the repair of laptop motherboards and other intricate electronics, the DH-A2E is capable of handling fine-pitch BGAs and providing the high level of precision required for repairing complex laptop components. The multi-zone heating and optical alignment features make it the perfect choice for technicians working with laptops, smartphones and computers.
Enhanced User Interface
The DH-A2E comes with an intuitive touchscreen interface, allowing users to easily control and adjust heating profiles, alignment settings, and more. The system provides real-time monitoring of the entire rework process, giving operators complete control over temperature, time, and alignment precision.
Safety and Reliability
The DH-A2E (the BGA rework station for laptop repair) was specifically designed with a focus on safety. It includes features such as advanced thermal protection and an overheat prevention system that support a safe working environment. The unit is constructed with quality components to provide reliable and long-lasting performance in both the repair and manufacturing of electronic equipment.
