                                    Automatic BGA rework machine for Auto ecu repair



Automatic BGA rework machine can repair various chips, cars chip, laptops chip, desktops chip and computers chips in

auto industry, mobile and communication industry and semiconductor industry for resarching & developing or after-sales service etc.

Parameter of automatic BGA rework machine  for Auto ecu repair



Total Power	6800W                 bmw ecu repair
Top heater	1200W
Bottom heater	2nd 1200W, 3rd German IR heater 4200W
Power	AC220V±10％     50/60Hz
Operation mode	Double joysticks operation. Fully automatic positioning, soldering, cooling, integration..
Optical CCD camera lens	Automatic Frontward / backward, right / left, or manual by joystick  toyota ecu repair
Camera magnification	10x - 100x
Workbench fine-tuning:	±15mm forward/backward,  ±15mm right/left    lexus ecu repair
BGA positioning	Laser position, fast and accurate position of pcb and bga    mercedes ecu replacement
Top air speed	Can be adjusted by adjusting knob, prevent tiny bga from movement.
PCB Positioning	Intelligent positioning, PCB can be adjusted in X, Y direction with "5 points support" + V-groove pcb bracket + universal fixtures.
Temperature control	K sensor, close loop, PLC control, Servo driver  bmw ecu repair near me
Placement accuracy:	±0.01mm          auto ecu repair
Temp accuracy	±1℃
Lighting	Taiwan led working light, any angle adjustable
Temperature profile storage	50000 groups
PCB size	Max 500×420 mm Min 22×22 mm
BGA chip	1*1 - 80x80 mm
Minimum chip spacing	0.15mm
External temper sensor	4pc    audi ecu repair
Dimensions	700x700x950mm
Net weight	95KG

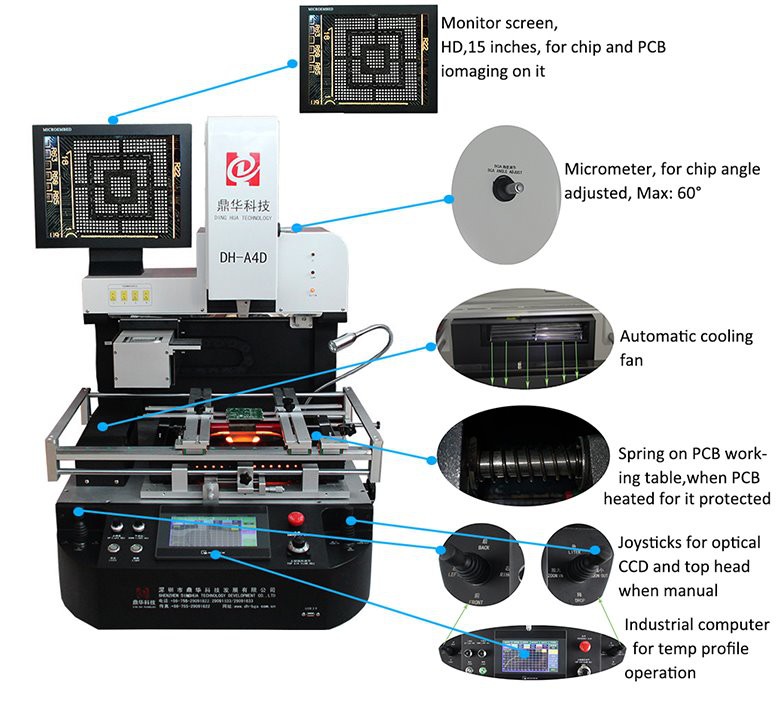

Parts introduction





Monitor screen	15 inches, for chip and PCB imaging on it
Micrometers	upper micrometers for chip's angle adjusting, lower angles for frond/back/left/right +/-15mm
Cross-flow fan	Automatically start for cooling after machine  stopping
Spring	equipped on working platform, which can better protect PCB when heating up
Joystic	double-joystic for upper head and optical CCD  controlling
Touchscreen	Real-time temperatures display, auto curves  generating and temperature profiles



Nitrogen equipment

optional

Machine dimension



Dimension:  L530*W670*H790mm

Accessories with the machne

Accessories:

3 upper nozzles and 2 bottom nozzles;

2 pcs of beams for larger supporting

4 pcs Plum screws & 4 pcs universal fixtures

5 pcs suppording scews without head

1 pcs brush for flux paste applying

5 pcs anti-high-temperature vaccum caps

3 pcs inner hexagonal spanner

1 pcs tweezer

1 pcs temperature tested cable

1 manual book

6 pcs universal stencils

1 pcs tool box

Pre-sales service:

We can have a trial to remove, reball, mount and solder your chips, if you can

send us your samples, then take a video or even live the whole procedures for

your reference.



Warranty and after-sales service

Always free consulting, free training ; 12 months free service and parts if any issue.

After 12 months, parts needed will be based on cost price, even free, it deepends on.

Pakage and shipping:

Wooden box (no need fumigation), with foam filling in the box, and wooden bars to make

machine fixed . bmw engine computer repair

At least 24~72 hours sustained vibration simulated a truck running at high-speed, to make

sure there will be no issue when shipping on a way to our customers. Auto ecu repair

Shipped by express, such as, DHL,TNT,FedEx or other; Air shipping and sea shipping etc.



Demo video of Auto Ecu Repair DH-A4D:



Q&A:

1. Q: Except for car chips, it can repair other chips?

    A: Yes, it can.

2. Q: Its infrared preheating area can be moved?

    A: Yes, moved to 100mm.

3. Q: Heating methods?

    A: Upper and lower hot-air for desoldering and soldering, bottome IR

        for motherboard preheating.

4. Q：Have been some famous companies/factories using it?

    A :  Yes, for instance, Huawei, Samung, Foxconn and Kinpo etc.

If more question, please don't hesitate to call or email us.
