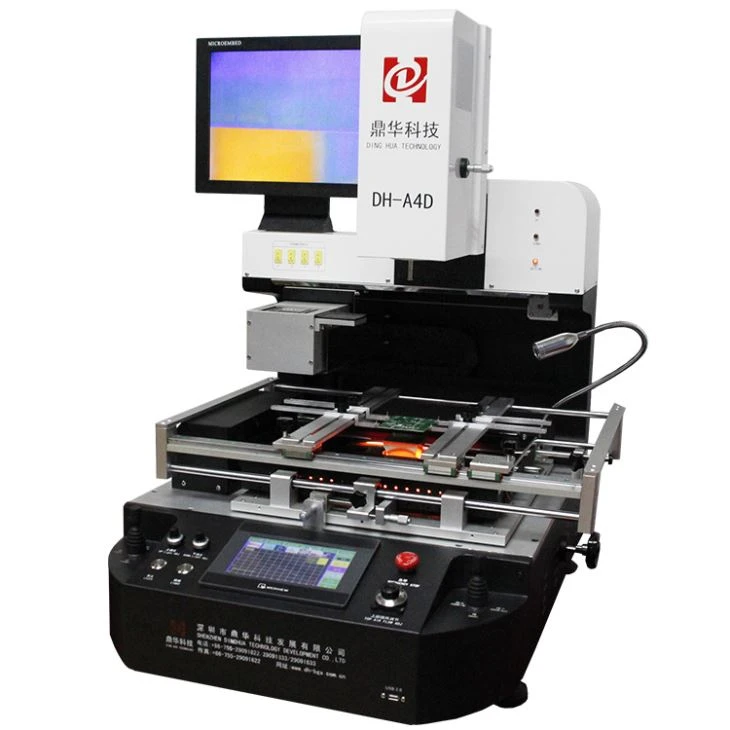

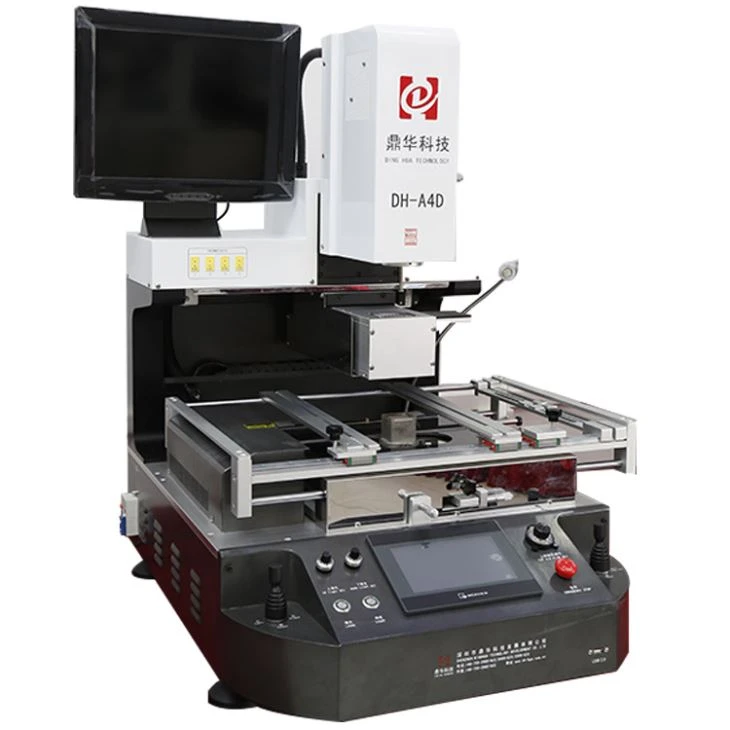

Full-auto Optical BGA Reballing Machine with split vision

           Fully automatic BGA reballing machine with optical CCD for alignment

This machine DH-A4D is full automatic, chip feeder can be used for chip (1*1~80*80mm), when chip positioning set,

the vacuum pen in top head can pick it up at the right position, optical CCD lens can move leftward, rightward, rearward or

backward, the high-end machine is especially used for factory, Universal Lab and assembly line etc. especially, it is the first

choice for Samsung and Huawei etc.

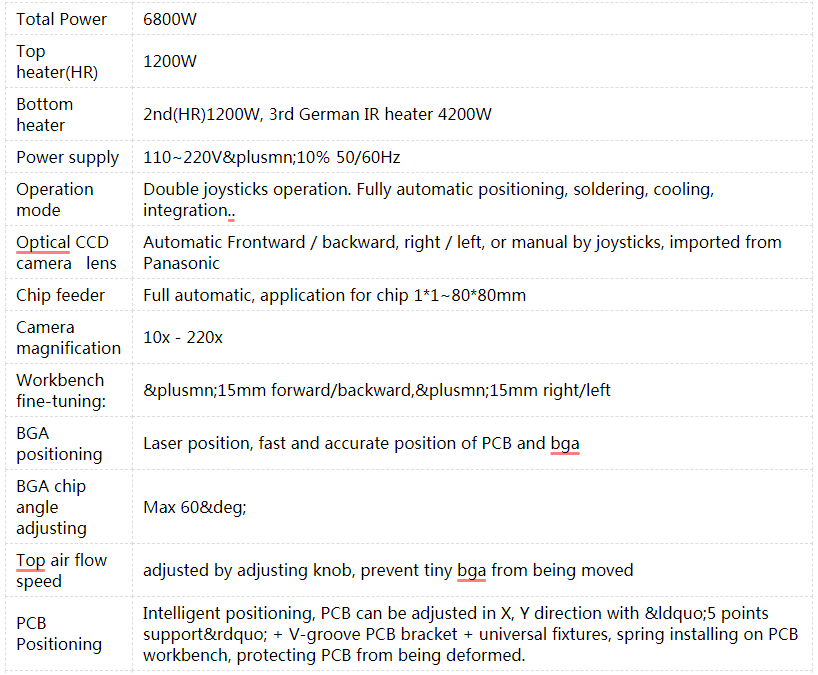

Product parameters of fully automatic BGA reballing machine with an optical  alignment system

 (Full-auto Optical BGA Reballing Machine with split vision)

Product details of fully auto optical BGA reballing machine(Full-auto Optical BGA Reballing Machine with split vision)

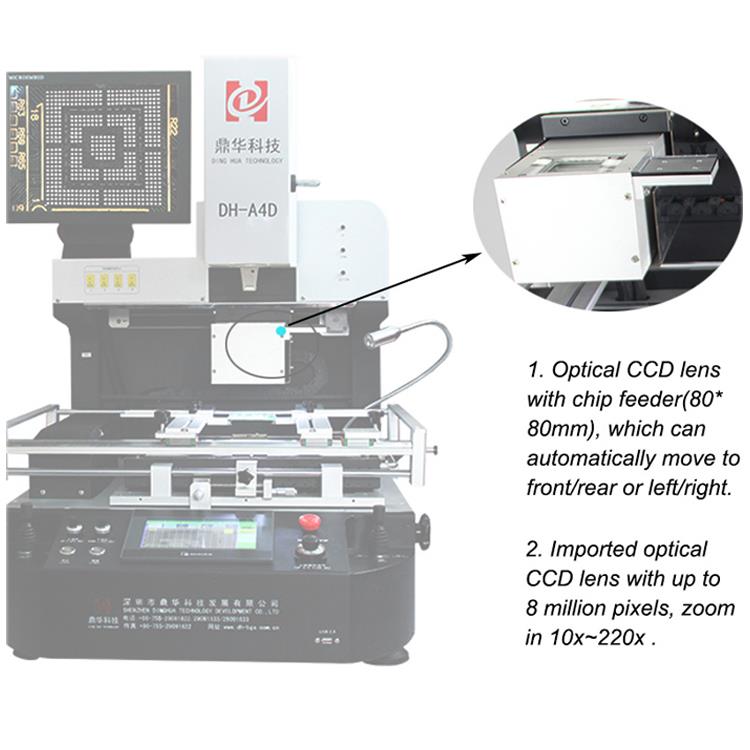

Optical CCD lens,(Full-auto Optical BGA Reballing Machine with split vision)it is imported from Panasonnic,

featuring with HD imaging, full automatic moved in X and Z direction,also,

the chip feeder is full auto just like Optical CCD lens.

2. 1*1~80*80mm, which can be toward to left/right or backward/forward.

3. Imported optical CCD can be up to 8 millions pixels

Infrared preheating area, carbon fiber heating tubes, anti high temperature glass shield, and the whole of IR

preheating area can be moved leftward or rightward.(Full-auto Optical BGA Reballing Machine with split

vision)

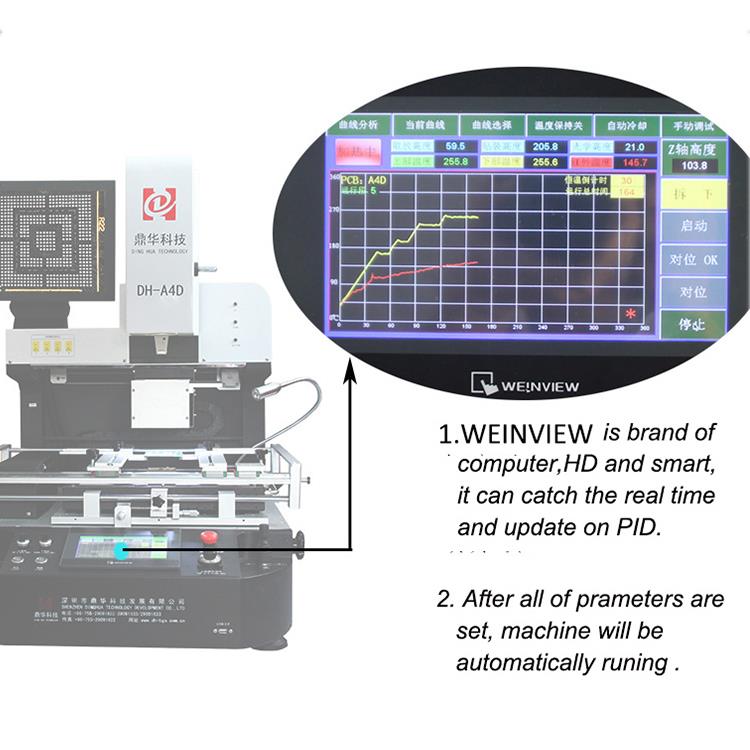

BGA rework station's industrial PC, for PID and PLC setting, working and operating etc;

WEINVIEW touchscreen, high-end products for BGA reballing machine, high efficient for temperature and time running;

Those prameters are set, the machine would be automatically desoldering, soldering and replacing etc

(Full-auto Optical BGA Reballing Machine with split vision)

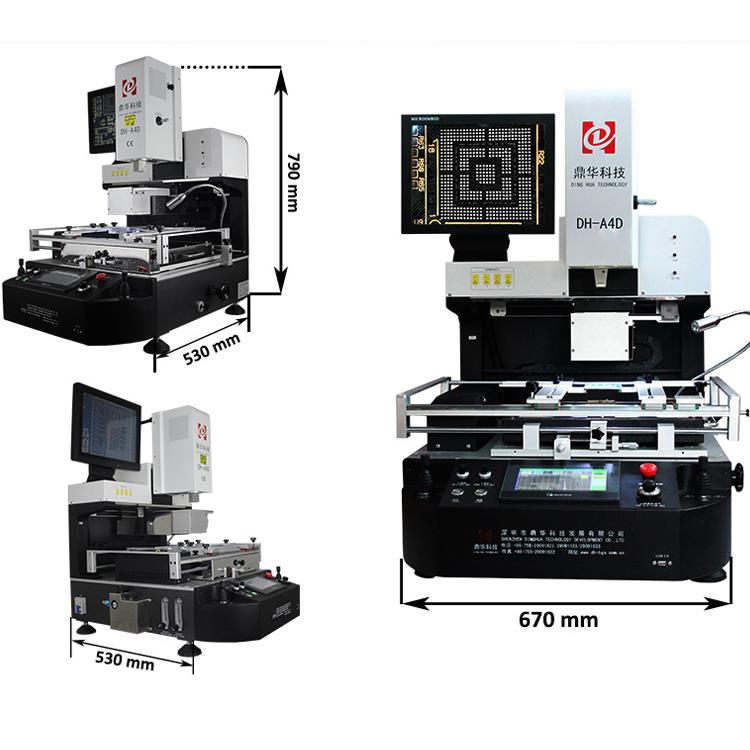

Full automatic BGA rework station dimension, reasonable design and powerful function are necessary

 for your high successful rate to rework.

Delivery, shipping and service of full auto optical BGA reballing machine(Full-auto Optical BGA Reballi-

ng Machine with split vision)

Before delivery: buyers, the end user can come to us for free training, and learn how our

Procedures are about machine vibrating for testing and checking etc.

After delivery, providing skilful guide for user to install and operate, even though know-how to elimina-

te some small problem when using.

FAQ of full auto optical BGA reballing machine Full-auto Optical BGA Reballing Machine with split vision

1.Q: if i come to your factory, can you pick me up at Airport?

A: Yes, we are near the air port.

2.Q: Can you help me translate the Language into my mother tongue?

A: Yes, if there is a massive quantity, it would be free that.

3.Q: Can I purchase these accessories from you?

A: Yes, there are solder ball, solder wick, BGA flux and reballing kit etc.

4.Q: Can I get these machine with duty free?

A: If these BGA rework stations are shipped to Euro and Russia or the Soviet Union by train or land transp-

ortation, it's OK, other countries, it depends on.

Latest News on the Full-Auto Optical BGA Reballing Machine

Full-Auto Optical BGA Reballing Machine with Split Vision

The development of independent chips is having a significant impact on the BGA rework industry worldwide.

Since 2017, the BGA rework industry has been undergoing significant changes. The driving factor behind this shift is the increasing importance of independently developed chips. Why are major companies focusing on independent chip research and development? The main reason is the rising cost of chips. This trend will greatly affect the BGA rework industry, which is becoming an additional industry tied to chip production-much like the mobile phone industry, where every manufacturer aims to have their own.

As domestic manufacturers have not fully mastered the supply chain for BGA chips, foreign chip manufacturers currently dominate the market. Most core devices are imported. To ensure profitability, companies are forced to adjust their prices in response to rising chip costs, which in turn raises the overall cost of chips. In this scenario, BGA rework stations become one of the most effective solutions for reducing costs. Overseas users also require high-efficiency BGA rework stations for PCB businesses, particularly fully automatic BGA reballing stations.

So, which BGA rework station is the best for most users in the industry? We recommend Dinghua, a manufacturer that excels in manufacturing, sales, after-sales service, and R&D. The BGA rework station (also known as a hot air rework station) primarily uses hot air circulation, supplemented by infrared and optical alignment. The machine is highly precise and flexible, suitable for reworking BGA, CSP, POP, PTH, WLESP, QFN chips, shielding frames, and modules on PCBA substrates such as servers, PC motherboards, tablet computers, and intelligent terminals.

So far, Dinghua has served major customers, including Foxconn, Google, Apple, and Huawei, among others.

Global manufacturers are investing heavily in the research and development of independent chips. Dinghua Technology will continue to follow this trend and develop BGA chip rework equipment to further enhance its competitiveness in the rework industry.
