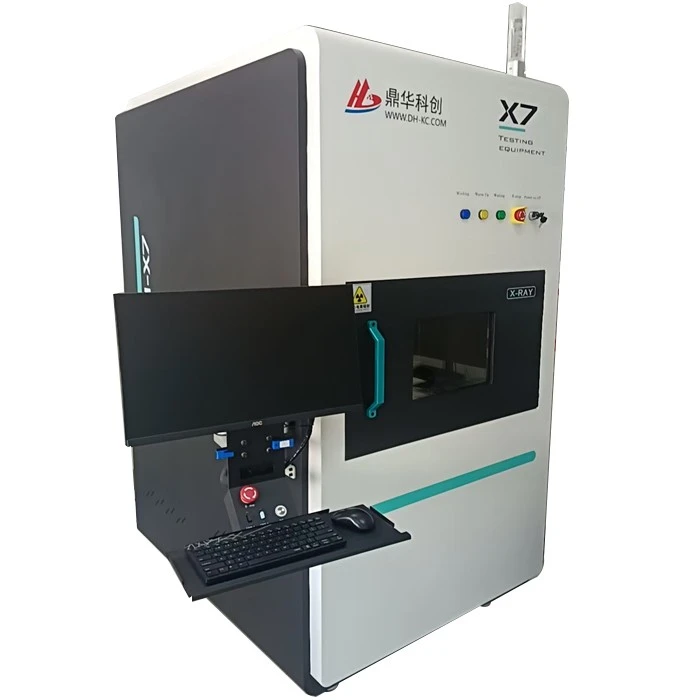

X Ray Solder Joint Inspection
Supports non-destructive testing of electronic parts and internal soldering defects of PCBA circuit boards (such as short circuits, pores, cracks, and foreign matter), with a resolution of 1176×1104, which can clearly identify micron-level defects.
Description
Products Description
Equipped with multi-angle tilt detection function (such as the maximum tilt angle of the detection table is 70°), it is suitable for the imaging needs of complex packaging structures (such as BGA, CSP, etc.)
Intelligent image processing technology
Use regional marking method to segment effective detection areas, reduce background interference, and combine automated analysis algorithms to batch process images to improve the recognition accuracy and efficiency of defects such as pores and cracks.
Support real-time analysis and automatic result interpretation (OK/NG), full detection cycle.
Hardware configuration and compatibility
The inspection table size is 430*430mm, suitable for medium and large component inspection in the fields of semiconductor packaging, automotive electronics, LED and aerospace.
The maximum voltage of the X-ray tube is 90kV, with strong focal length, which can cover metal castings, high-density PCB and other pearl materials
Products video
The video of xray soldering joint machine:
Products Application
PCBa and die-casting parts inspected
pcb x ray inspection machine price for chips: bga,ic, qfn and plcc; small metal parts used in a cellphone
Industrial manufacturing: Used for reliability verification of automotive electronic solder joints. Semiconductor packaging: Detection of internal lead damage, solder ball cold soldering and other problems in IC and FC packaging. Scientific research and quality inspection: Combine X-ray and image analysis technology to provide non-destructive testing solutions for medical equipment and military products. Advantages and industry adaptability Efficiency and reliability: Balance detection speed and accuracy through semi-automatic detection processes and high-precision equipment (such as 5μm focal spot size).
FAQ OF x ray machine for pcb
Q: Can i get a warranty ?
Q: Can you help me test it before placing an order?
A: Sure, it's free
Q: Does it meeet international standard?
A: Yes, less than 5µSV/h
Q: Can your engineer to our factory for training?
A: Yes, we can.
Q: Do you have your own xray tube?
A: Yes, we have developed several xray-tubes, such as, 50KV, 90KV and 110KV etc.
Q: Can i be your distributor?
A: Please contact us: +8615768114827 , if you never sold the type of machines.
