Desktop PCB Soldering Machine

1.Introduction of Desktop PCB soldering machine

1.Mature 4 axis mechanical motion desktop, repeat positioning accuracy can reach ±0.02mm.

Compact cantilever type structure, easy operated handheld teaching pendant controller

2. Accurate solder quantity management and temperature management
Precise solder feed system makes the soldering joint to be constant, and can save a mass of solder;

 the stable temperature control system can eliminate worries of bad soldering quality.

3. Humanized teaching pendant can complete program settings easily
The handheld teaching pendant can complete any soldering program easily, and it is able to complete

various soldering programs’ settings such as copy, modification, etc.
Suitable for various soldering applications.
Almost all components that can be soldered by hand that can be soldered by the robot, e.g.: normal

PCB soldering, car electronic components, other electronics products, etc.

4. Able to add auto solder flux system.

2.Parameters of Desktop PCB soldering machine

3.Features of Desktop PCB soldering machine

(1.Perfect soldering process Settings, with pull and spot welding function, each instruction has

independent soldering parameters, such as preheating tin length, preheating welding time, back to

 the tin, lift height, and so on.
(2. With the rapidly Process instructions, soldering parameters copy, array, translation, batch edit, type

bulk changes , can greatly improve the editing efficiency.
(3. Support to import the PLT format file, realizes to directly import the file of path data, convenient

and accurate.
(4. This table soldering machine can offline or independent operation, welding parameters stored in

SD card, it convenient for the parameter copy and save between devices.
(5. With big storage space, can store thousands of soldering process, each program for 1000 welding

 Tin instruction
(6. Two types of send tin device: break tin function/without breaking tin function.
(7. Display with 320 * 240 high resolution color screen, English operation interface, easy to operate.

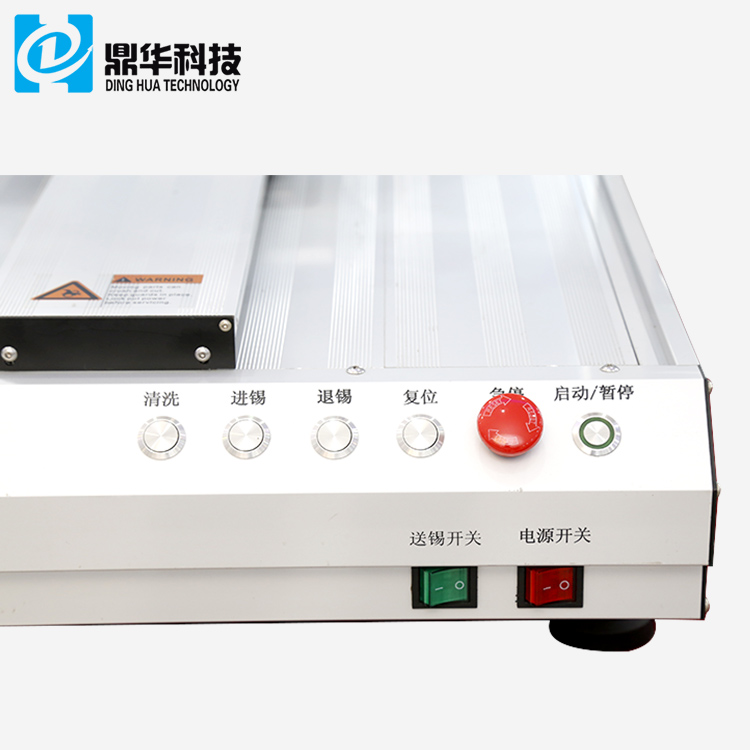

IV Details of Desktop PCB soldering machine

1. Teach pendant for easy debugging, operation and simple programming.

2. Very easy to set the temperature according to the different solder, precisely Control the temperature

 during the whole soldering.

3. RTC+TM, fast temperature heating and cool, efficient and no damage to product.

5.FAQ of Desktop PCB soldering machine

Payment:

* We accept Paypal and alipay here.

* We also accept T/T, Western Union, MoneyGram, etc..

Shipping:

·We do not ship this product by Singapore /HK/ China Post Air Mail. Because it is hard to track and takes

more time. Especially, it is not so fafe.

·We will use FedEx/DHL/UPS/TNT/EMS for fast and safe shipping. We will use the most convenient one

when you buy the product.

·Before shipping, we will pack every product well for you. And please check the outside package when

you receive the parcel well.

·If you have special requirement for shipping, please let us know in advance.

Warranty :

·We provide 12 months Warranty for our products!

·If you are not satisfied with our products when you receive them, please return it within 10 days for a replacement

or money back. Please contact me before you return it.

·If item is defective in 1 month for product reason, we will send you a replaced spare part without extra charger,

or offer refund after we receive the defective item.

·If item is defective after 1 month, you can still send it back to us. We will fix it for you free of charge and send

it back to you, but you should bear the shipping cost.
