Can PCB X-ray detect mis - drilled holes in PCBs?

Hey there, folks! I'm from a PCB X-ray supplier, and today I wanna chat about a super important topic in the PCB manufacturing world: Can PCB X-ray detect mis-drilled holes in PCBs?

Let's first understand what mis-drilled holes are. In PCB production, holes are drilled for various purposes, like connecting different layers of the board. Mis-drilled holes can occur due to a bunch of reasons. Maybe the drill bit is worn out, or there's an issue with the drilling machine's alignment. These mis-drilled holes can cause all sorts of problems, from electrical shorts to poor connections, which can seriously affect the performance and reliability of the PCB.

Now, let's talk about PCB X-ray. PCB X-ray is a powerful inspection tool that can peer inside the PCB without causing any damage. It uses X-ray technology to create images of the internal structure of the board. You can think of it like a medical X-ray for PCBs. When the X-ray passes through the PCB, different materials absorb the X-ray to different degrees. Metals, like copper traces, absorb more X-rays, while the insulating materials absorb less. This difference in absorption creates a contrast in the X-ray image, allowing us to see the internal components and features of the PCB.

So, can it detect mis-drilled holes? The answer is a big yes! When a hole is mis-drilled, it can show up clearly on the X-ray image. For example, if a hole is drilled off-center, the X-ray will reveal that the hole is not in the correct position relative to the other components on the board. If the hole is drilled at the wrong angle, the X-ray image will also show this deviation. Additionally, if there are any broken drill bits left inside the hole, the X-ray can easily spot them.

One of the great things about using pcb xray for detecting mis-drilled holes is its non-destructive nature. In traditional inspection methods, sometimes you have to physically cut or disassemble the PCB to check for internal issues. But with X-ray inspection, you can get a clear view of the internal structure without damaging the board. This means you can inspect the PCBs without affecting their functionality, and you can still use them in your products.

Another advantage is the high level of accuracy. PCB X-ray machines can provide detailed and precise images, allowing you to detect even the smallest mis-drilled holes. This is especially important in modern PCBs, which are becoming more and more complex, with smaller components and finer traces. The ability to detect mis-drilled holes accurately can help you catch quality issues early in the manufacturing process, saving you time and money in the long run.

Let's take a closer look at how the X Ray Machine For Pcb works. When you place a PCB in the X-ray machine, the machine emits X-rays that pass through the board. The X-rays are then detected by a detector on the other side of the board. The detector converts the X-rays into an electrical signal, which is then processed by a computer to create an image. The operator can then analyze the image on a monitor to look for any signs of mis-drilled holes or other defects.

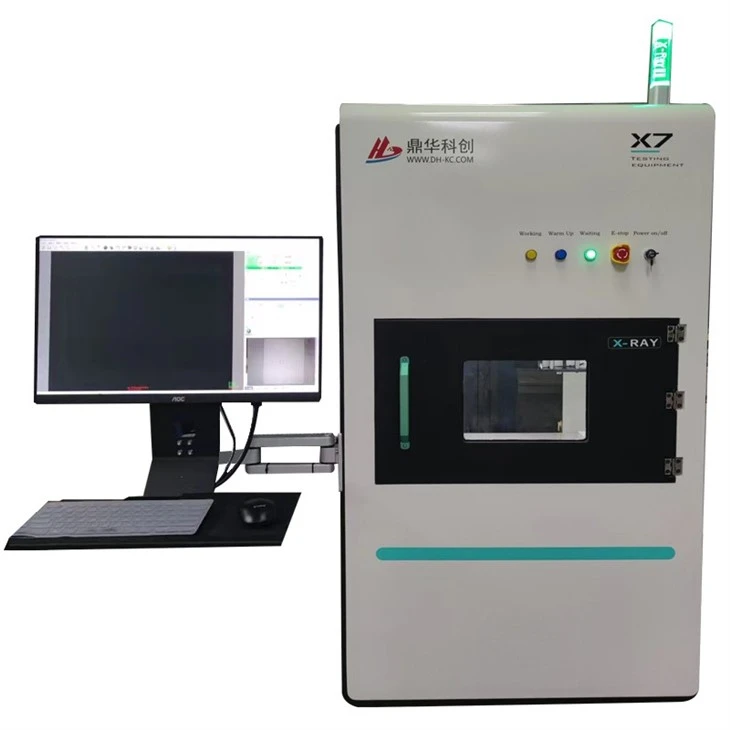

There are different types of X Ray Inspection Machine available, depending on your specific needs. Some machines are designed for small-scale production, while others are suitable for large-scale manufacturing. The more advanced machines can provide 3D images of the PCB, giving you an even better view of the internal structure.

In addition to detecting mis-drilled holes, PCB X-ray can also be used to detect other types of defects, such as solder joint defects, component placement errors, and internal shorts. This makes it a very versatile inspection tool in the PCB manufacturing industry.

If you're in the PCB manufacturing business, investing in a good PCB X-ray machine can be a game-changer. It can help you improve the quality of your products, reduce the number of defective PCBs, and increase customer satisfaction. By detecting mis-drilled holes and other defects early, you can avoid costly rework and production delays.

So, if you're interested in learning more about our PCB X-ray machines or have any questions about how they can help you detect mis-drilled holes in your PCBs, don't hesitate to reach out. We're here to help you find the right solution for your specific needs. Whether you're a small PCB manufacturer or a large-scale production facility, we have the expertise and the equipment to meet your requirements.

In conclusion, PCB X-ray is a highly effective tool for detecting mis-drilled holes in PCBs. Its non-destructive nature, high accuracy, and versatility make it an essential part of the PCB manufacturing process. If you want to ensure the quality and reliability of your PCBs, consider investing in a PCB X-ray machine. And if you have any questions or need more information, just contact us. We're looking forward to working with you!
