Touch Screen Notebook BGA Rework Station
Touch screen bga rework station Quick preview: Original factory price! DH-A1 BGA Rework Machine with IR heater for ipad repairing is now in stock.It is designed by user-friendly operation system,aiming to help operator to understand how to use within few minutes. 1. Specification...
Description
Touch screen ipad bga rework station
Quick preview:
The BGAReworkStation is a professional-grade tool used for repairing and reworking electronic devices, including Apple iPads.
It features a specialized heating plate and hot air gun that can remove and reapply solder and other components with precision.
This allows technicians to replace damaged components or upgrade devices as needed. The BGAReworkStation is designed to be
versatile, precise, and efficient, making it an ideal choice for businesses or individuals who need to repair or maintain a large number
of iPads or other electronics.
1. Specification
1 | Power | 4900W |
2 | Top heater | Hot air 800W |
3 | Bottom heater Iron heater | Hot air 1200W, Infrared 2800W 90w |
4 | Power supply | AC220V±10% 50/60Hz |
5 | Dimension | 640*730*580mm |
6 | Positioning | V-groove, PCB support can be adjusted in any direction with external universal fixture |
7 | Temperature control | K type thermocouple, closed loop control, independent heating |
8 | Temp accuracy | ±2 degrees |
9 | PCB size | Max 500*400 mm Min 22*22 mm |
10 | BGA chip | 2*2-80*80mm |
11 | Minimum chip spacing | 0.15mm |
12 | External Temperature Sensor | 1(optional) |
13 | Net weight | 45kg |
2.Application of the DH-A1 BGA rework station
Application：
Product Application
Motherboard of computer,smartphone,laptop,digital camera ,air conditioner,TV and other electronic equipments from medical
industry,communication industry,automobile industry,etc.
Wide range of application: BGA, PGA, POP,BQFP, QFN, SOT- 223, PLCC, TQFP, TDFN, TSOP, PBGA, CPGA, LED chip.
3.Why you should choose Dinghua?
Easy operation, from solder printing to equipping
Using the enclosed solder printing tool, you can print a solder Paste directly into any device’s solder ball.(Since it’s configured for a
multitude of applications, it is possible to operate with many components by simply changing the component’s metal mask)
Furthermore, the solder’s release property changes for every user. Since the device always picks it up with a different, specific speed,
is it pos-sible to achieve satisfactory results with each use.
▶▶▶
1.Align with the metal mask’s component external line, insert the device, and cover.
2.Turn the solder printing tool inside out and print the cream solder on the device.
3.Place the tool on the optic arm and let the component attach itself automatically to the inside of the nozzle.
4.Display on a high-vision screen and align the PCB and the device.

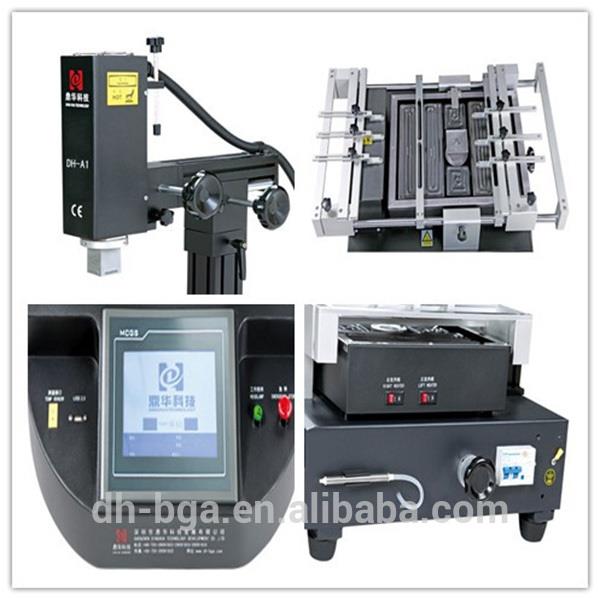

4.Detailed Images of DH-A1 BGA REWORK STATION
5.Packing & delivery details of DH-A1 BGA REWORK STATION
Delivery detials of DH-A1 BGA REWORK STATION
Shipping: |
1.Shipment will be done within 5 business days after receiving payment. |
2.Fast delivery shipment by DHL,FedEX,TNT ,UPS and other ways including by sea or by air. |
6. Service
1.We'll have a good check and test before shipping out.
2.We'll send you the English operating manuals or videos for you in the package or by email.
3.24 hours technical support by email or calling.
4.Warranty:1 year free,2-3 years cost price and free technical support always.
5.Free training to make sure you master the operating of this machine.
6.After-Sale service.If any question, Just contact us by Email or Calling, we will reply as soon as possible.
