Optical Game Consoles BGA Rework Station

                                                                       Optical game consoles bga rework station

1. Quick preview:

With ease to operate the system, the DH-G600 optical bga rework station is particularly designed to repair game consoles.

We devoted ourselves to bga rework & automatic machinery, covering most of India, Europe, and the American market.

We are expecting to become your long-time partner in China.

3. The main features of the DH-G600 BGA rework station

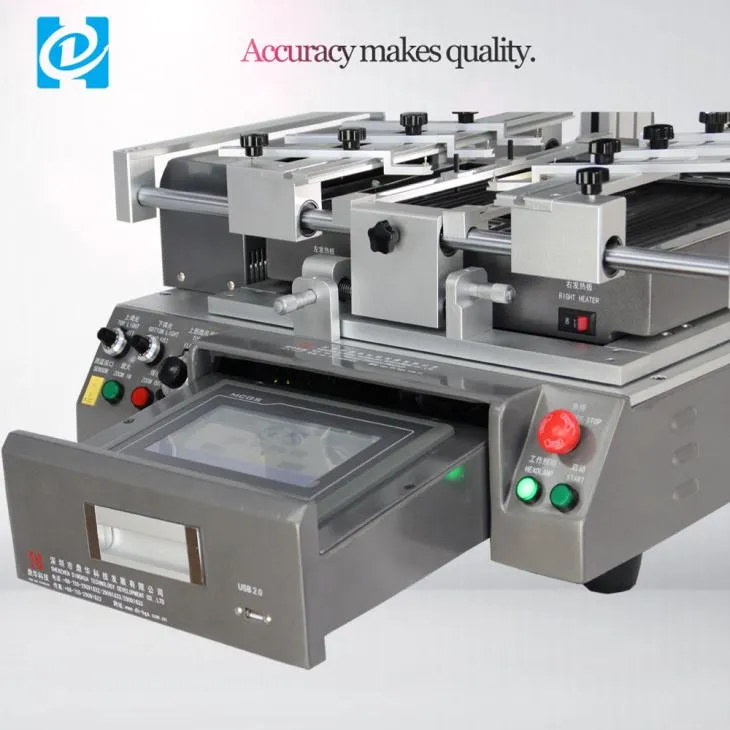

4.Detailed Images of G600 BGA REWORK STATION

HD Optical CCD Lens Alignment System

The camera is imported from Panasonic, Japan to ensure the replacement accuracy at ±0.01mm

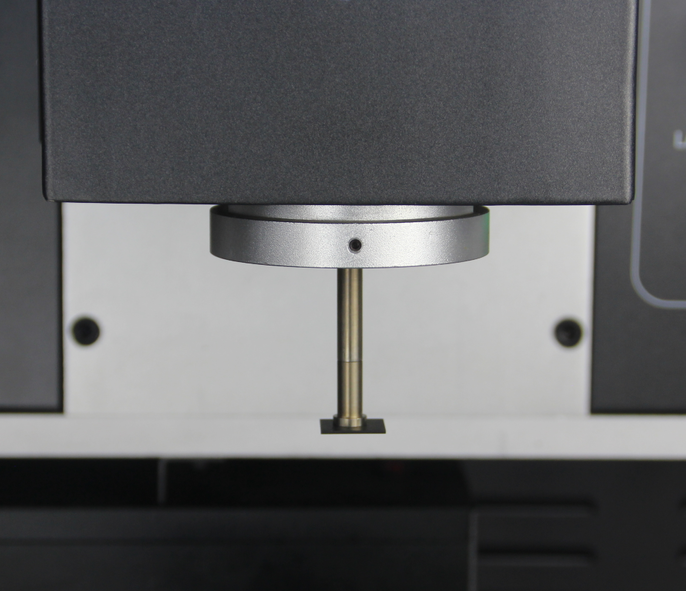

Mounting head with built-in pressure testing device, to protect the PCB from damage.

build-in vacuum in mounting head picks up BGA chip automatically after desoldering completed

With top airflow adjust, to prevent tiny bga from blowing away.

PCB Positioning: V-groove, PCB boards can be adjusted in X, and Y axis and equipped with a universal fixture

5. Advantages

Easy operation, from solder printing to equipping

Using the enclosed solder printing tool, you can print a solder Paste directly into any device’s solder ball.(Since it’s

 configured for a multitude of applications, it is possible to operate with many components by simply changing the

component’s metal mask)

Furthermore, the solder’s release property changes for every user. Since the device always picks it up with a different,

specific speed, is it possible to achieve satisfactory results with each use?

▶▶▶

1. Align with the metal mask’s component external line, insert the device, and cover.

2. Turn the solder printing tool inside out and print the cream solder on the device.

3. Place the tool on the optic arm and let the component attach itself automatically to the inside of the nozzle.

4. Display on a high-vision screen and align the PCB and the device.

6. Packing & Delivery & Services of G600 BGA REWORK STATION

Delivery Policy： Normally, it takes about 3 working days to USA and 4 days to European countries and more than

3 days for slow expresses. We can ship as per your request and help to find the most cost-efficient and fast way.

Once upon delivery, We will send your tracking Number immediately.

7. FAQ of the G600 BGA REWORK STATION

Q:Do you provide the Warranty? How about the after-sales service?

A1 year warranty free for spare parts, Whole life technical support.

We have a professional after-sales team, if you have any questions, assistant videos are also provided in after-sale service.

Q: This machine is easy to use? if I have no experience, I can also operate it well?

Do you provide the user manual and operating videos to support us?

A:Yes, our BGA machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician,

it will be much faster to learn.

We will provide the English user manual for free, and the operation video is available

Q: Why I choose you?

A. We are a manufacturer of kinds of tools related to electronics maintenance. You can buy what you need here at a very reasonable

 price.

B. With 20 years of experience in this field, we have the ability to provide good service and products in a low cost.

C. Adequate inventory to make sure that our clients can obtain goods in a short period.

8. Services

Dinghua offers the below-mentioned services for our customers:

Your inquiry will be replied in 24 hours.

Technology support. Provide Demo operation video for training; if you have time, welcome to our company. Will arrange for

engineers to show you the operation.

Professional after-sales service team.

Provide shipping/delivery information checking service.

One year guarantee, all life maintain promise.

9. Related knowledge

Rework (or re-work) is the term for the refinishing operation or repair of an electronic printed circuit board (PCB) assembly,

usually involving desoldering and re-soldering of surface-mounted electronic components (SMD). Mass processing techniques

are not applicable to single device repair or replacement, and specialized manual techniques by expert personnel using appro-

priate equipment are required to replace defective components; area array packages such as ball grid array (BGA) devices par

ticularly require expertise and appropriate tools. A hot air gun or hot air station is used to heat devices and melt solder, and sp-

ecialized tools are used to pick up and position often tiny components.

A rework station is a place to do this work—the tools and supplies for this work, typically on a workbench.
