SMD Mobile Phone Repair Machine

Model: DH-A2

1.Application Of Automatic SMD Mobile Phone Repair Machine

Solder, reball, desoldering different kind of chips: BGA,PGA,POP,BQFP,QFN,SOT223,PLCC,TQFP,TDFN,TSOP, PBGA,CPGA,LED chip.

2.Advantage of Hot Air Automatic

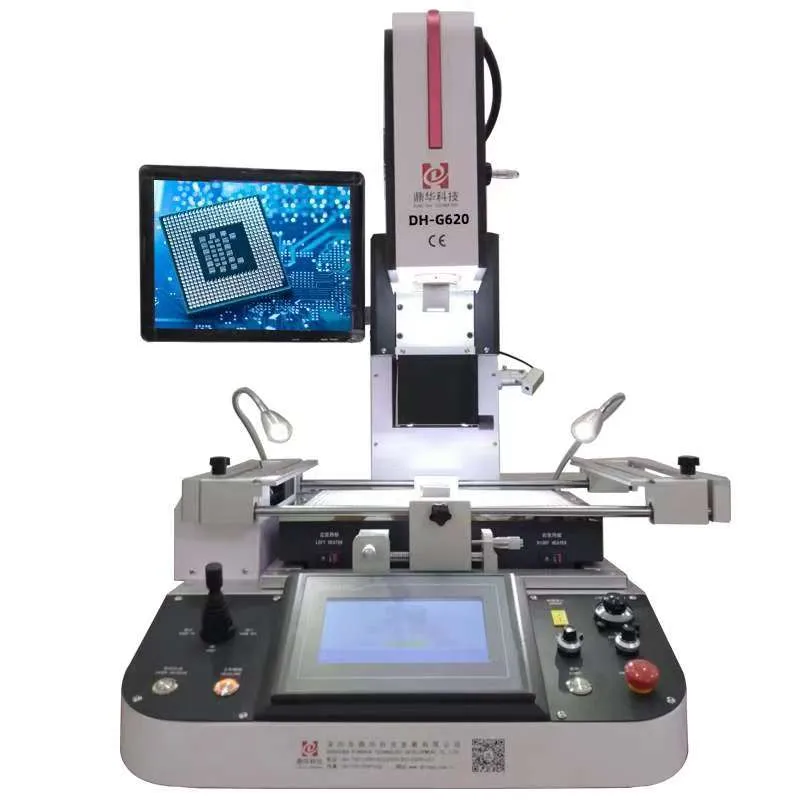

DH-G620 is totally same as DH-A2, automatically desoldering, pick-up, puting back and soldering for a chip, with optical alignment for mounting,no matter whether you have experience or not, you can master it in one hour.

3.Technical data of laser positioning Automatic


Power	5300w
Top heater	Hot air 1200w
Bottom heater	Hot air 1200W. Infrared 2700w
Power supply	AC220V±10% 50/60Hz
Dimension	L530*W670*H790 mm
Positioning	V-groove PCB support, and with external universal fixture
Temperature control	Ktype thermocouple,closed loop control,independent heating
Temperature accuracy	+2℃
PCB size	Max 450*490 mm, Min 22 *22 mm
Workbench fine-tuning	±15mm forward/backward,±15mm right/left
BGA chip	80*80-1*1mm
Minimum chip spacing	0.15mm
Temp Sensor	1(optional)
Net weight	70kg

4.Structures of Infrared CCD Camera Automatic





5.Why Hot air reflow Automatic SMD Mobile Phone Repair Machine is your best choice?



6.Certificate of Optical Alignment Automatic

UL, E-MARK, CCC, FCC, CE ROHS certificates. Meanwhile, to improve and perfect the quality system, Dinghua has passed ISO, GMP, FCCA, C-TPAT on-site audit certification.

7.Packing & Shipment



8.Shipment for Split Vision Automatic

DHL/TNT/FEDEX. If you want other shipping term, please tell us. We will support you.



9. Operation guide

10. Contact us

Email: john@dh-kc.com

MOB/WhatsApp/Wechat: +8615768114827

Click the link to add my WhatsApp:

https://api.whatsapp.com/send?phone=8615768114827

11. Related Knowledge

How to fix a phone?

If a mobile phone is broken, there are two possible situations: One is that the mobile phone hardware is damaged, and the other is that the mobile phone software is malfunctioning. The hardware may include components like the screen, battery, and other parts. If the software is the issue, it could be due to problems such as failure of the flashing machine, the system not booting, or errors in operation that result in the accidental deletion of software.

1. Broken screen: If your screen is broken, you can either take it to a mobile phone repair shop, or if you feel confident, you can buy a replacement screen and replace it yourself. One of my colleagues does this.
2. Deleted system software: If you accidentally delete the system software and the phone is no longer functioning properly, you will need to re-flash it. If you've flashed the wrong system or caused the phone to malfunction, there are also repair solutions available to restore the system. The best option is to seek help on major forums.
3. Identifying the problem: If your phone is broken, it is important to find the correct solution. For example, if the issue is with the mobile phone system, you should contact support for your specific phone brand and model. A technician can help answer your questions. It's likely that many people online are facing the same issues, and through discussion, the problem can be resolved.

How to Repair Your Phone?

1. Repair welding method: Before performing repair welding, diagnose the faulty unit by analyzing the circuit's working principle. Then, perform "large area" repair welding on the faulty unit, which involves re-soldering the relevant and suspect solder joints.
2. Voltage measurement method: After powering on the mobile phone, measure several key points of the circuit. By comparing the measured voltage with the reference value, you can quickly identify the fault range and the faulty component.
3. Current observation method: The technician can determine the approximate location of the fault by observing the current in the mobile phone during standby and operation.
4. Resistance measurement method: This method involves measuring the resistance of components using a multimeter to determine whether the components are functioning properly.
5. Replacement method: The replacement method involves swapping faulty components with functional ones. When using this method, ensure that the replacement components are normal and of the same type.
6. Cleaning method: Due to the mobility of mobile phones, dust and moisture can easily enter, so cleaning the circuit board is an important step in mobile phone maintenance. When cleaning, the display screen, receiver, microphone, ringer, and vibrator should generally be removed from the circuit board. The circuit board is then cleaned using an ultrasonic cleaner with absolute alcohol.
7. Bridging method: This method is often used for mobile phones that have been severely corroded, causing circuit interruptions. Repair is done using a thin, high-strength enameled wire to bridge the connection.
8. Touch method: This method is used for repairing the power supply circuit, temperature-sensitive circuits in the power amplifier, and electronic switches. When these circuits have issues, their surface temperatures will become abnormal. By touching the components of these circuits, you can judge whether they are faulty.
