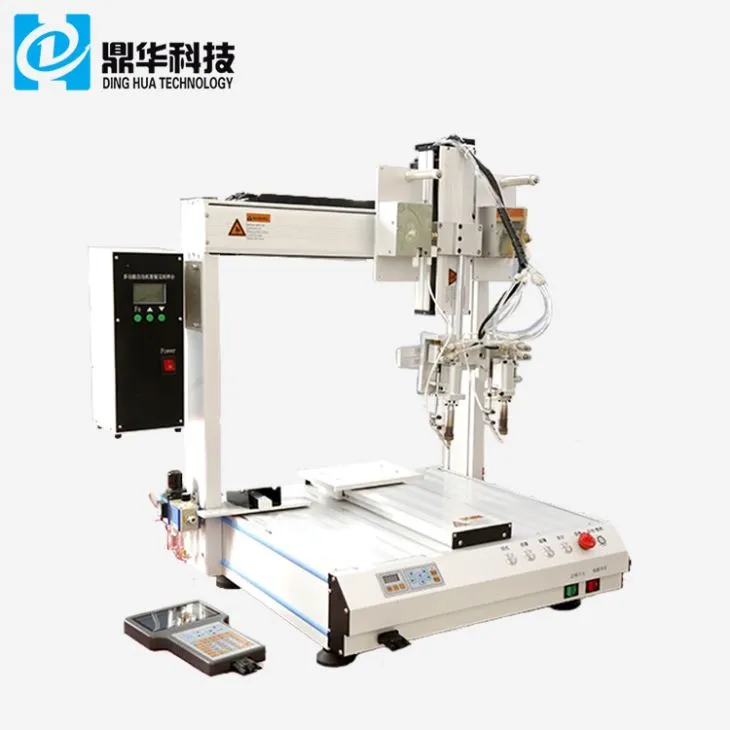

Automatic Soldering Robot

Selective Automatic Soldering Machine in 5-axis(Single X Double Y Style)



Video Introduction:





1.Introduction of automatic soldering robot

1. 5 axis automatic soldering robot
2. Apply for spot welding, drag welding, curve welding, circle welding,irregular curve continuous welding.
3. Program can be copied.
4. Maximum 999 programs can be stored, different program can be changed simply for different product with one button, no need to re-program.
5. Customization is optional.



2.Parameters of automatic soldering robot



3. Features of automatic soldering robot

1. High power soldering station with fast heat recover to ensure the stability of continuous solder

2. Automatic cleaning system for soldering iron tip to enhance production efficiency

3. I/O interface provided for external input and output control - Optional visual position identification system to solve the jig and product position consistency problem

4. Optional safety grating and guard to ensure operator safety

5. best-selling robotic series in numerous industries for years. Anyone can quickly start and instantly install for soldering automation. The best choice for the first experience in soldering automation.



4.Details of automatic soldering robot

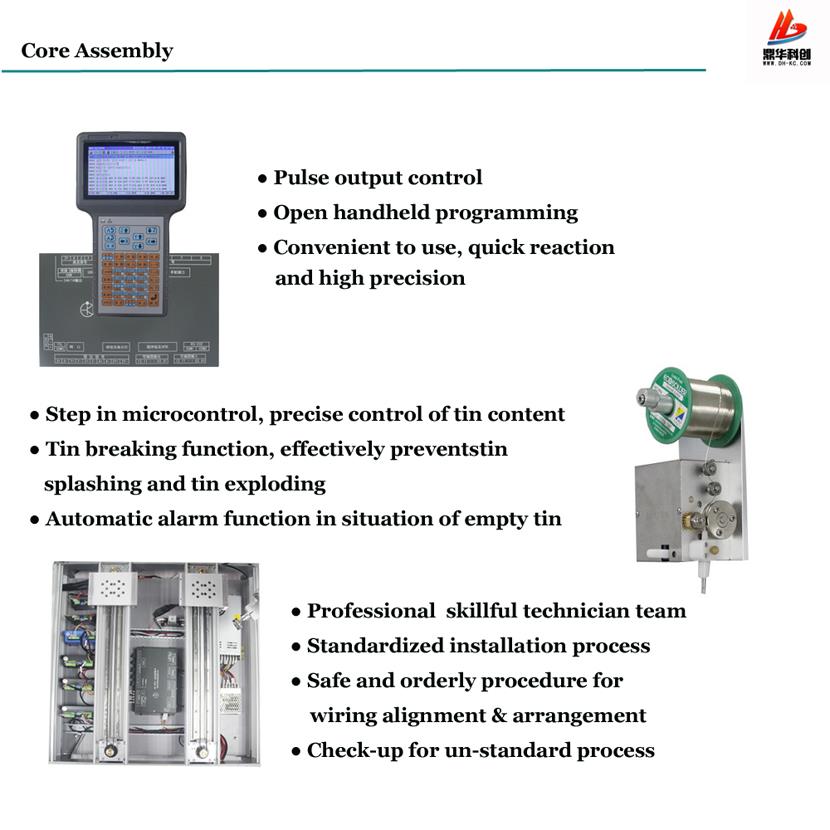

1. Teach pendant for easy debugging, operation and simple programming.

2. Very easy to set the temperature according to the different solder, precisely Control the temperature during the whole soldering.

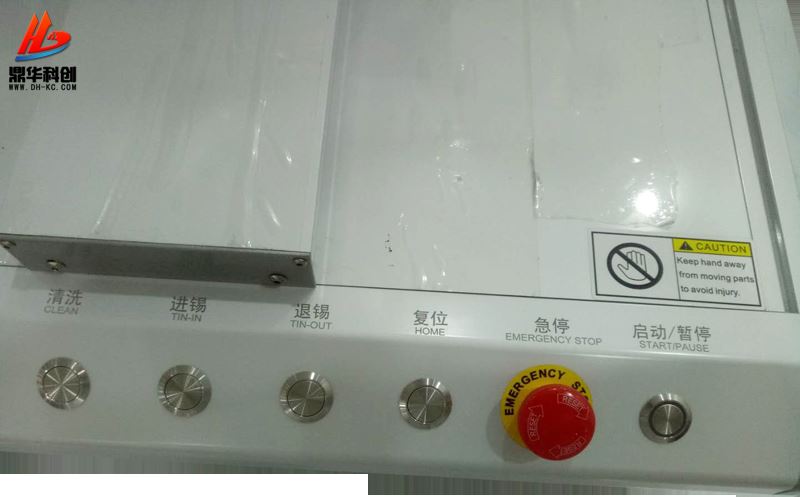

3. English & Chinese language for each button on the work panel, easy to understand and operate.

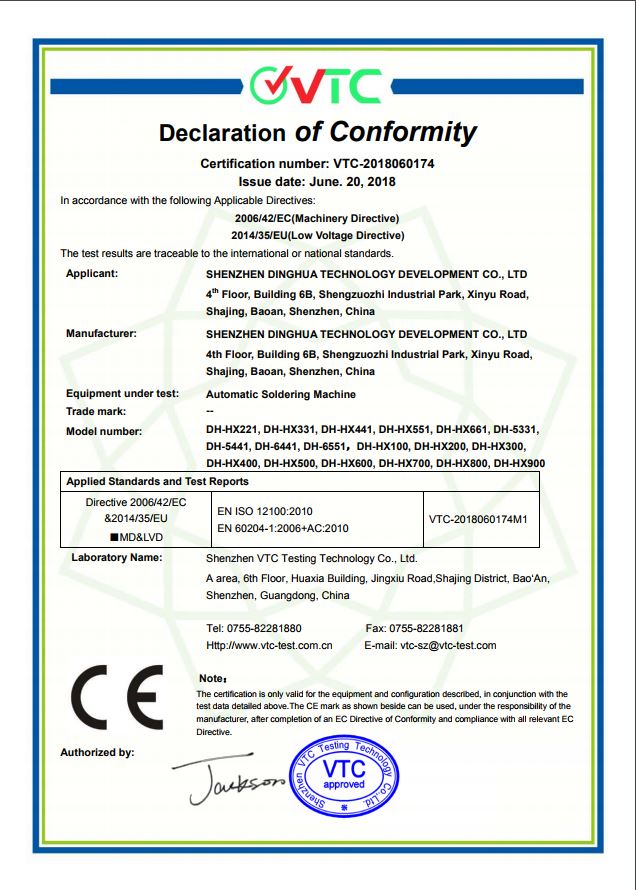

4. Certificates



5. Packaging & Deliveries

6. Company Introduction



7. Our Services

1. At pre-sales, free for demonstration and information consults, on site or by video.
2. Can provide process video or training before shipment, at your need.
3. At after-sales, with strong professional technical back-up team.
4. Offer huge discount for messive order volume or for repeated orders.
5. Warranty: 1 year for free, and to receive parts cost for the further years.



8.FAQ of automatic soldering robot

Q: What is an automatic soldering robot?

A: An automatic soldering robot is a machine that can perform soldering tasks without

the need for human intervention. It is equipped with advanced features such as a robotic

arm, a soldering iron, and a soldering station to perform high-quality soldering tasks with

precision and accuracy.



Q: What are the benefits of using an automatic soldering robot?

A: Using an automatic soldering robot can offer many benefits, such as increased productivity,

consistent quality, reduced labor costs, improved safety, and greater efficiency. It can perform

complex soldering tasks that require high precision and accuracy, enabling businesses to deliver

high-quality products to their customers.



Q: How does an automatic soldering robot work?



A: An automatic soldering robot works by using a pre-programmed set of instructions to perform

soldering tasks. The robotic arm of the machine is programmed to hold the soldering iron and m-

ove it to the designated location on the PCB (print circuit board) to perform soldering. The machine

 is also equipped with sensors and cameras to ensure accurate placement of the soldering iron and

precise application of heat to the solder.



Q: What types of applications can an automatic soldering robot be used for?

A: An automatic soldering robot can be used for a wide range of applications, including electronics

manufacturing, automotive, medical devices, aerospace, and consumer products. The machine can

perform soldering tasks on a variety of materials such as metals, plastics, and ceramics, making it highly

versatile and useful in a variety of industries.



Q: Is it easy to operate an automatic soldering robot?

A: Yes, operating an automatic soldering robot is relatively easy. The machine is equipped with a user-

friendly interface, making it simple even for non-technical personnel to use. Moreover, the machine is pre-

programmed with soldering instructions, reducing the need for additional training for employees.



In conclusion, an automatic soldering robot is an advanced machine that can offer many benefits to busi-

nesses. It can perform high-quality soldering tasks with precision and accuracy, increasing productivity, and

reducing labor costs. With its versatility and user-friendly interface, it is an excellent investment for compa-

nies looking to improve their manufacturing processes.
