Manual Optical BGA Rework Machine
Optical bga rework machine 1. Quick preview: We supply DH-G600 with better performance. If you are looking for a bga rework station for mobile phone repairing, congratulation! You’ve find the original factory -- Dinghua Tech. Our factory may be the best one of BGA rework station in China.
Description
Optical bga rework machine
1. Quick preview:
We supply DH-G600 with better performance.
If you are looking for a bga rework station for mobile phone repairing, congratulation! You’ve find the original factory
-- Dinghua Tech. Our factory may be the best one of BGA rework station mfg.We are expecting become your long team
partner in China.
Product parameter | |
Product name | soldering and desoldering machine |
Total power | 5300W |
top heating | 1200w |
bottom heating | bottom hot air heating 1200W, IR preheating 2700W |
Power | 220V 50HZ/60HZ |
Positioning | V-groove, PCB boards can be adjusted in X, Y axis and equipped with universal fixture |
Temperature control | K-type, Closed loop |
PCB size | Max 400x380mm, Min 22x22mm |
Chip size | 2x2-50x50mm |
Minimum chip spacing | 0.15mm |
External temperature sensor | 1(optional) |
N.W. | approx 60kg |
Suitable motherboards | mobile phone, laptop, desktop, game console, XBOX360, PS3 |
3. Product Features and application of the DH-G600 BGA rework station
Main Features
1). Imported heater, high quality, durable.
2). Taiwan infrared pre-heating ceramic plate, glass guard.
3). Adopt two heating zone, upper heater is infrared heating, lower heater is infrared preheat zone.
4). K type close loop control, the temperature accuracy will be on ±2°C
5). With outer sensor connector, detech actual temperature when heating.
6). High power cross flow cooling fan, prevent the PCB from deformation.
7). Sound hint system: there is voice reminder 5s-10s before the completion of heating,to get the operator prepared.
8). Security measure: overheat guard and emergency stop function
DH-G600 BGA Rework Station APPLICATION:
Apply to electronic assembly and manufacture in reworking and maintaining operation.
High stability PCB, SMD components remove/mount, reflow station.
Remove/mount the components of PBGA, UBGA, CSP, PLCC, QFP, SOJ, MSP, SOP, etc.
Suitable for large size of PCB.
⇒ Laptop / Notebook/ Computer motherboard repair.
⇒ Playstation / XBOX 360 and other game console repair.
⇒ Iphone 4/ 4s / 5 / 5s motherboard repair.
⇒ TV / Video / ipad mainboard repair.
⇒ SMD/ SMT / IC BGA rework
Why choose DH-G600 BGA rework Station?
One of the best advantages of DH-G600 BGA rework Station is that it is suitable with all kinds of IC, including
but not limited to BGA, PGA, POP, BQFP, QFN and so on. Buying one machine can meet all your damands of IC
repairing and BGA replacement.
4.Detailed Images of G600 BGA REWORK STATION
A manual optical BGA rework machine is a specialized tool used for repairing or replacing ball grid array (BGA)
components on electronic circuit boards. It typically includes a high-resolution optical system that allows tech-
nicians to visually inspect the board and the BGA component, as well as heating elements and vacuum systems
to remove and replace the BGA. The "manual" aspect refers to the fact that the technician must manually cont-
rol the machine's heating and cooling cycles and the movement of the component, rather than relying on auto-
mated software.
4. Company Profile
Some pictures of our factory and BGA rework station

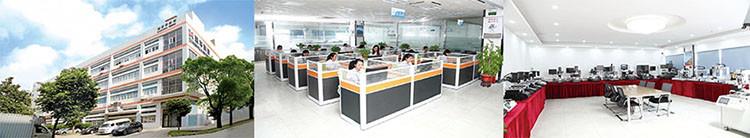

Offices
Manufacturing lines
5.CE Certification as below
Part of our Clients
6. Packing & Delivery & Services of G600 BGA REWORK STATION
